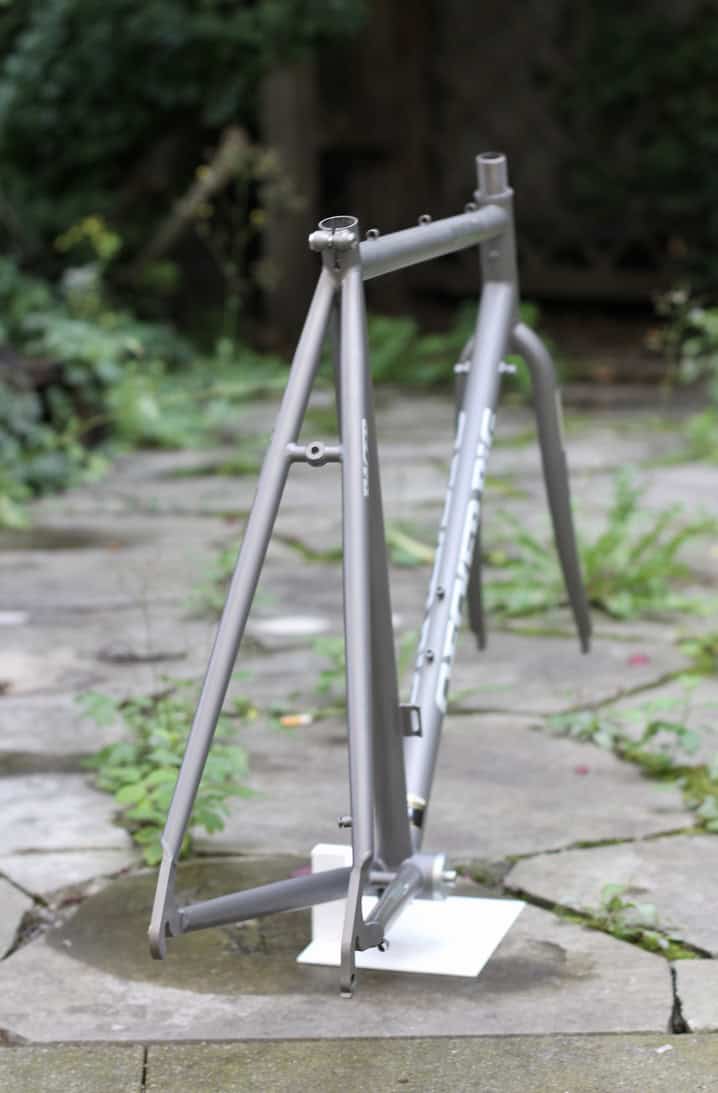

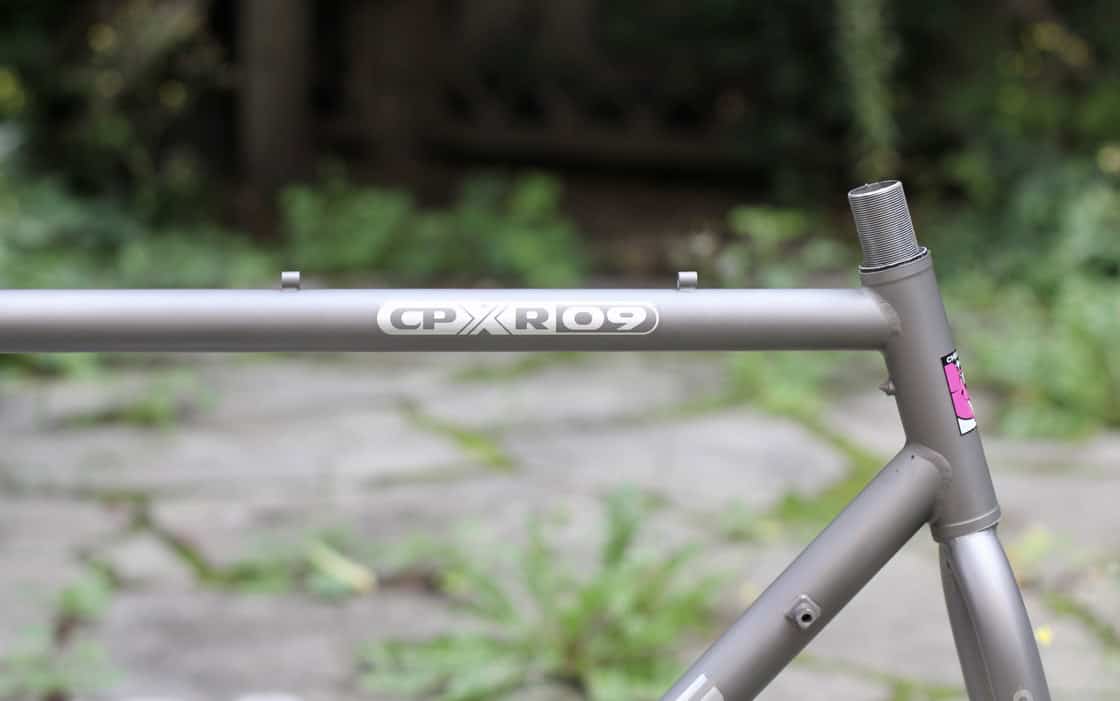

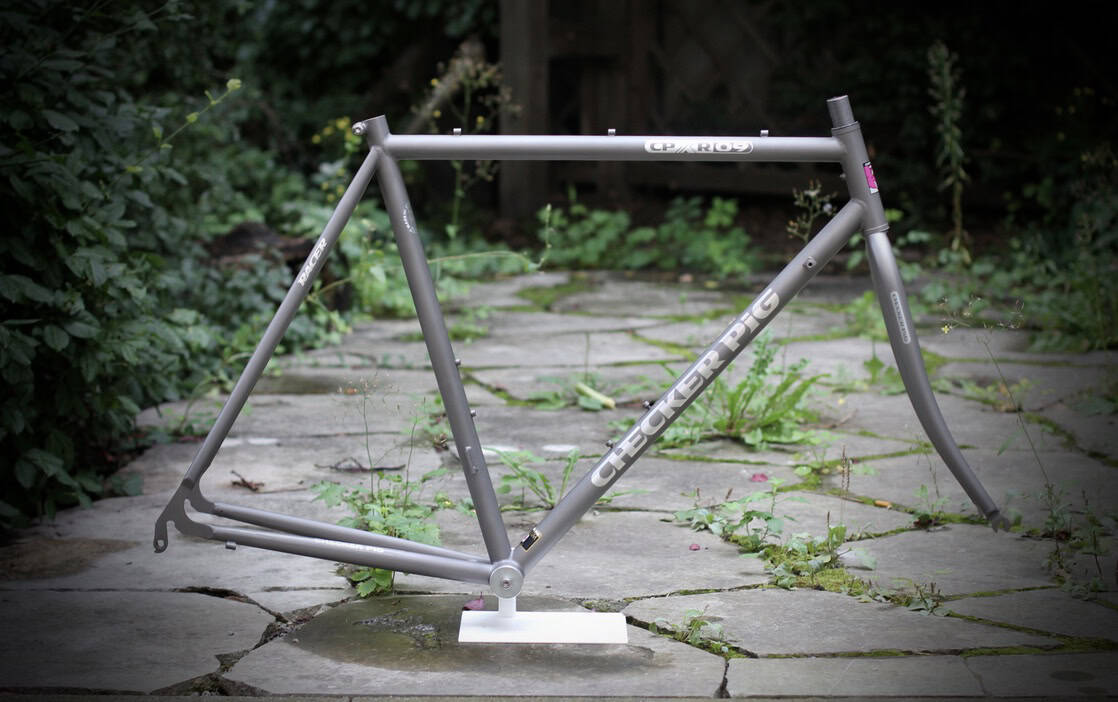

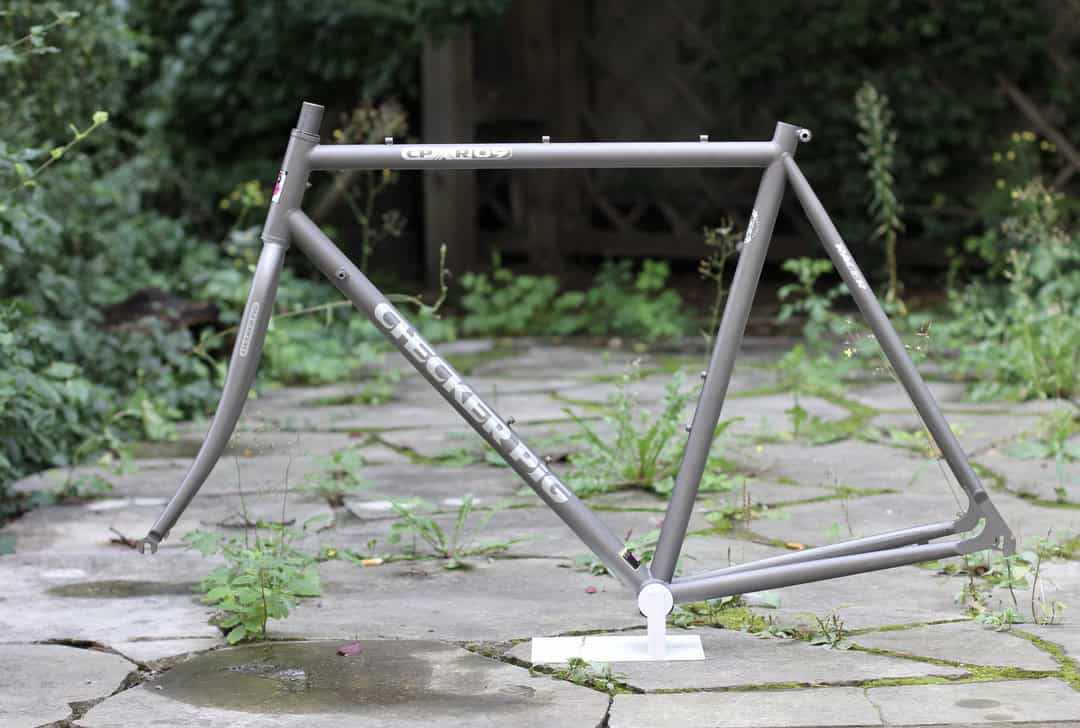

Checker Pig CPX R09 Titanium Frame / 53.5 cm

999.00

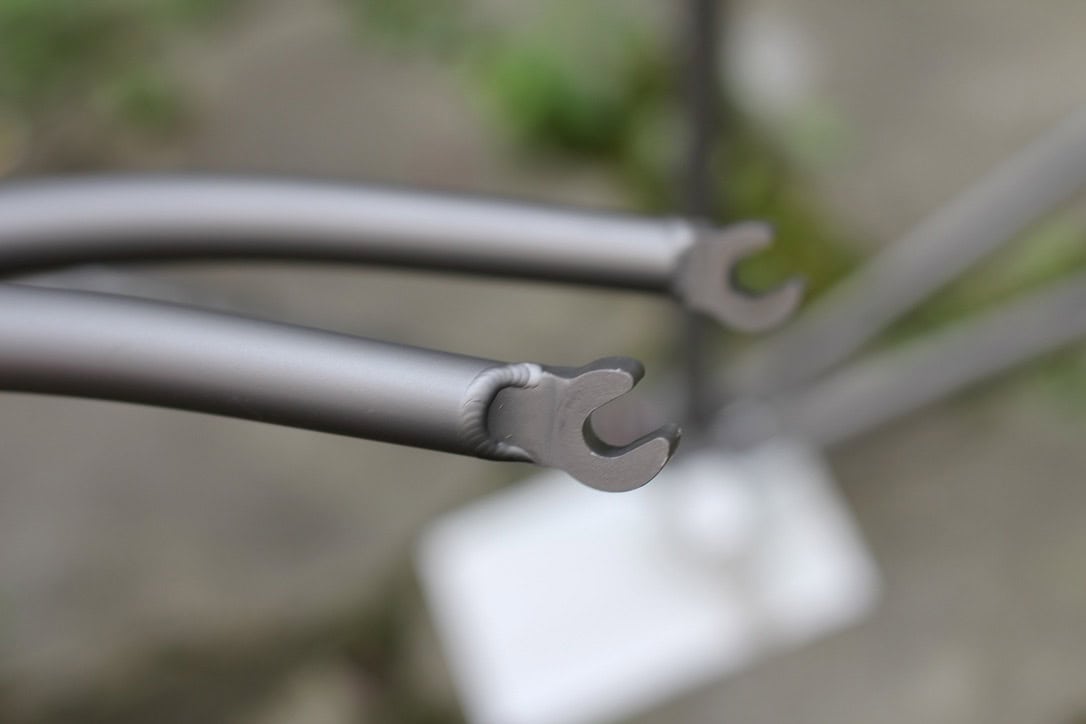

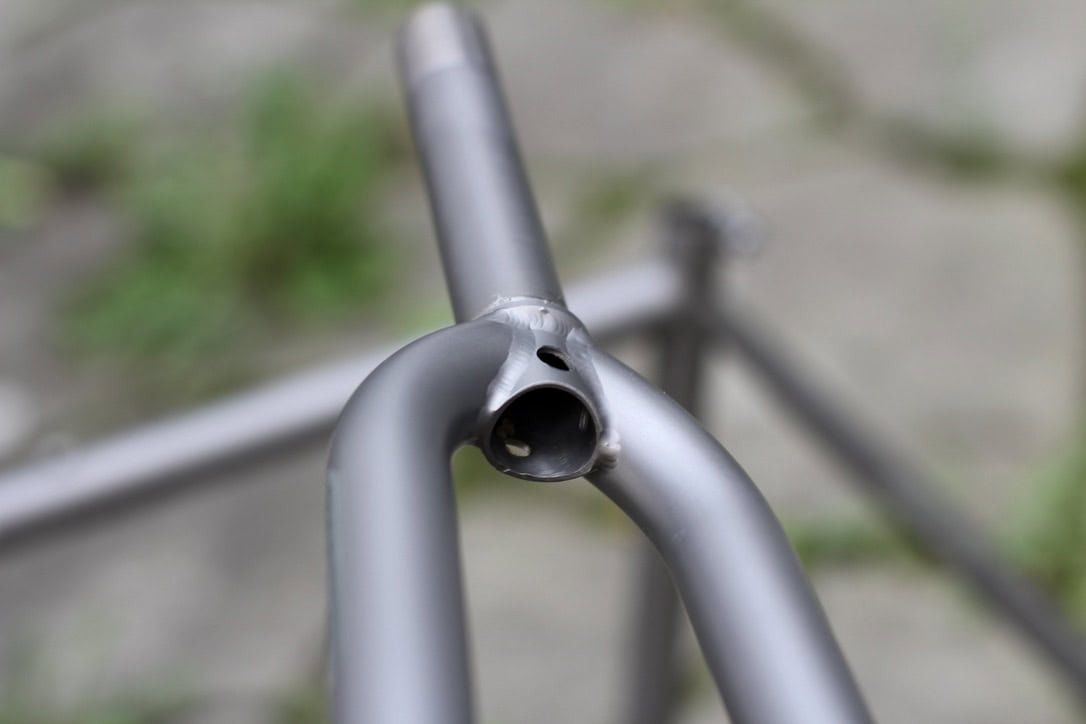

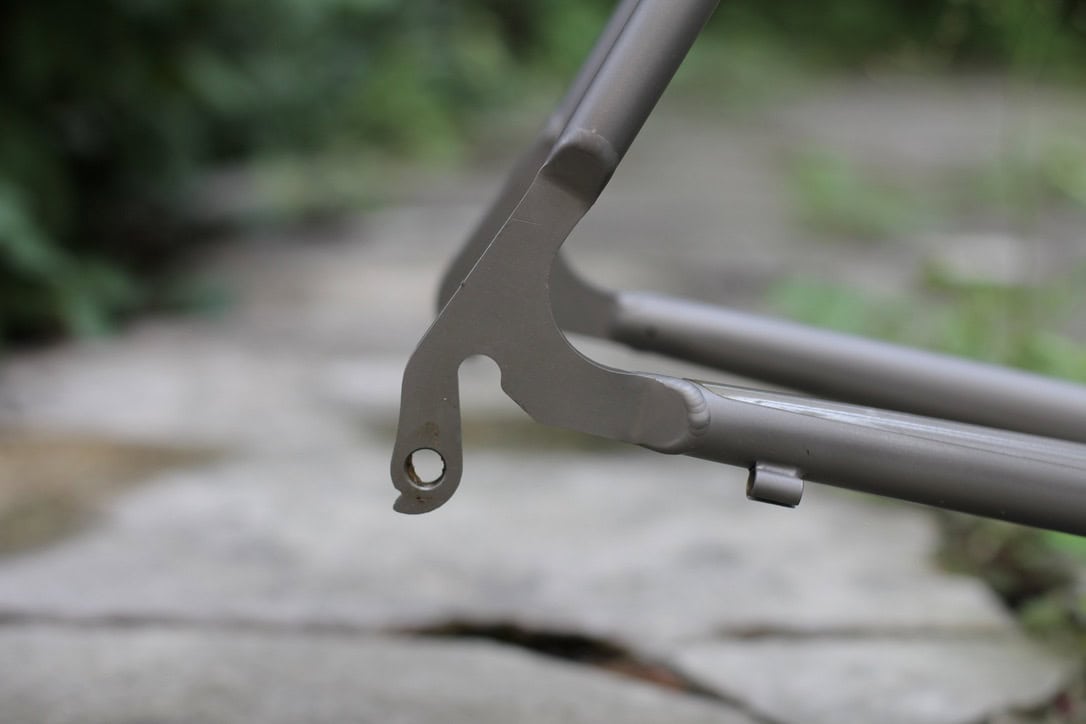

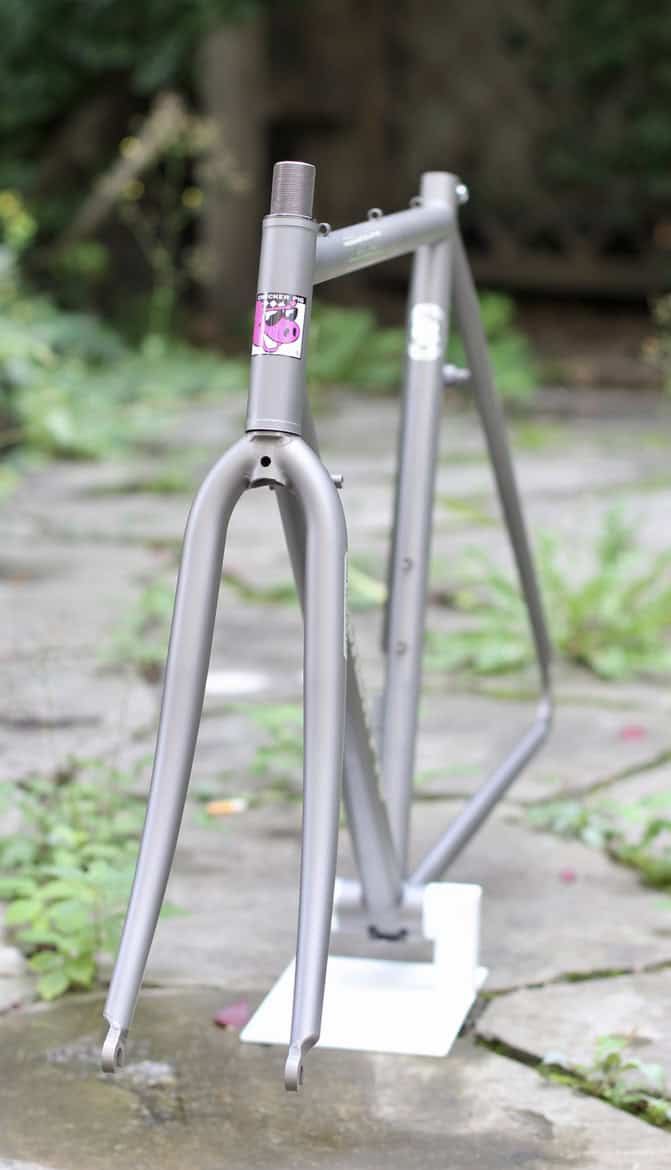

super rare Checker Pig Titanium Frame and Fork from mid to end 1990s

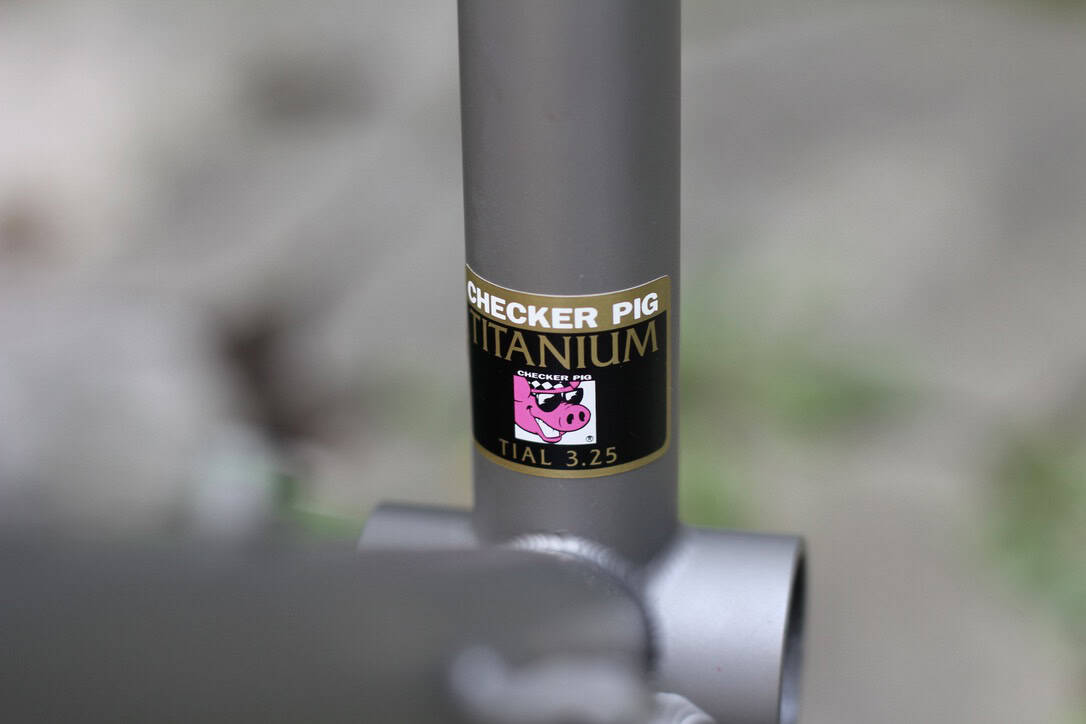

made of superlight TiAl 3.25 Tubing
Brake cable routing external
Shifting Cable routing under the Bottom Bracket
.

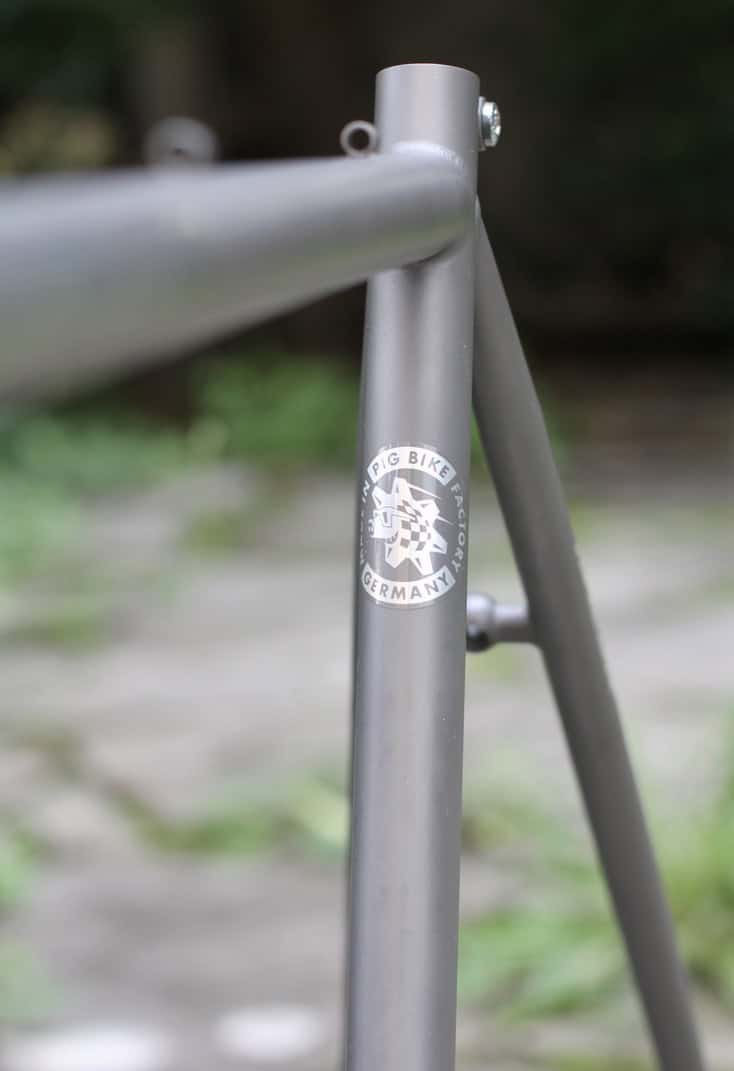

Made in Germany
Checker Pig was a high quality manufacturer of racing and track bikes in the early 1990s. Later, it became one of the first German manufacturers of Mountainbikes. The naming rights were sold to a wholesaler in 2004. Therefore, today’s bikes have nothing to do with the manufacturer of that time.
Out of stock

Out of stock



Description

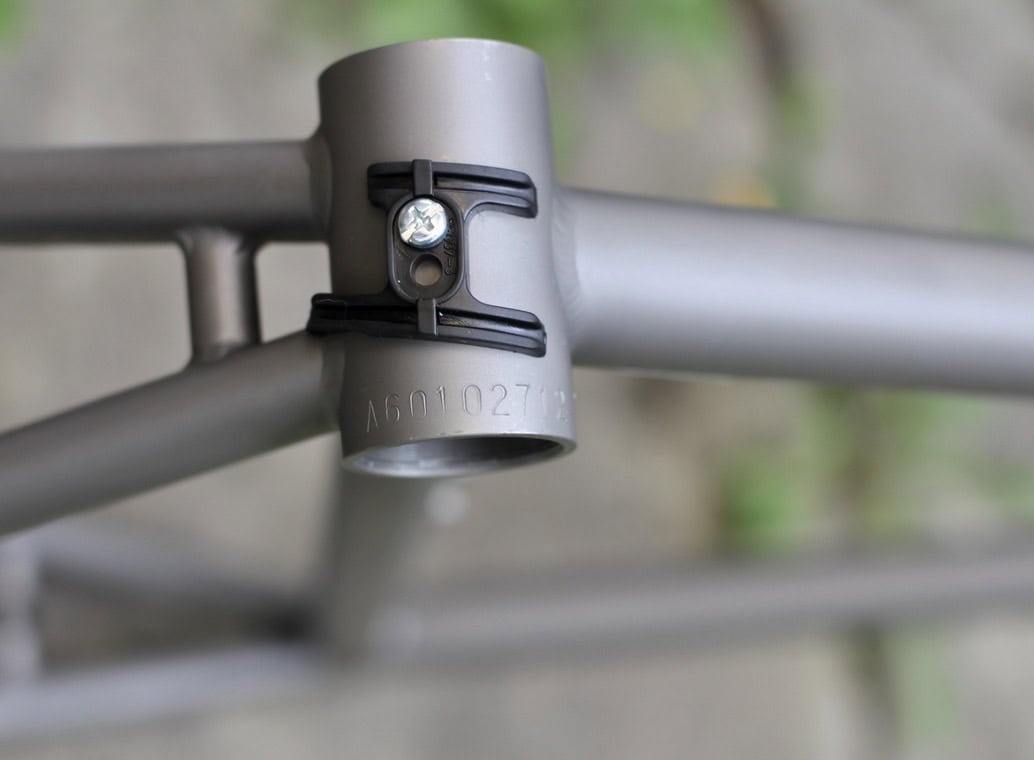

Stamp

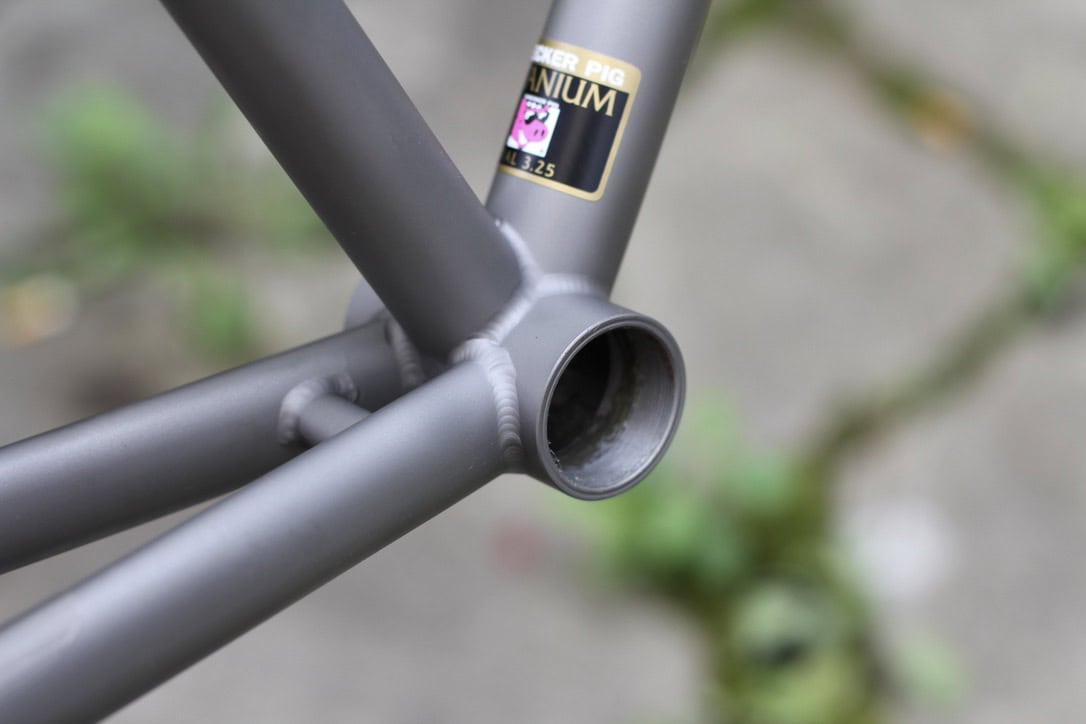

Bottom Bracket
“A60102712
”

Color
titanium grey
decals silver

Measurements
(A) seattube:       53,5 cm (c/c)  54,5 cm (c/t) > 57 cm
(B) toptube:         55,5 cm (c/c)
(C) headtube:      130 mm

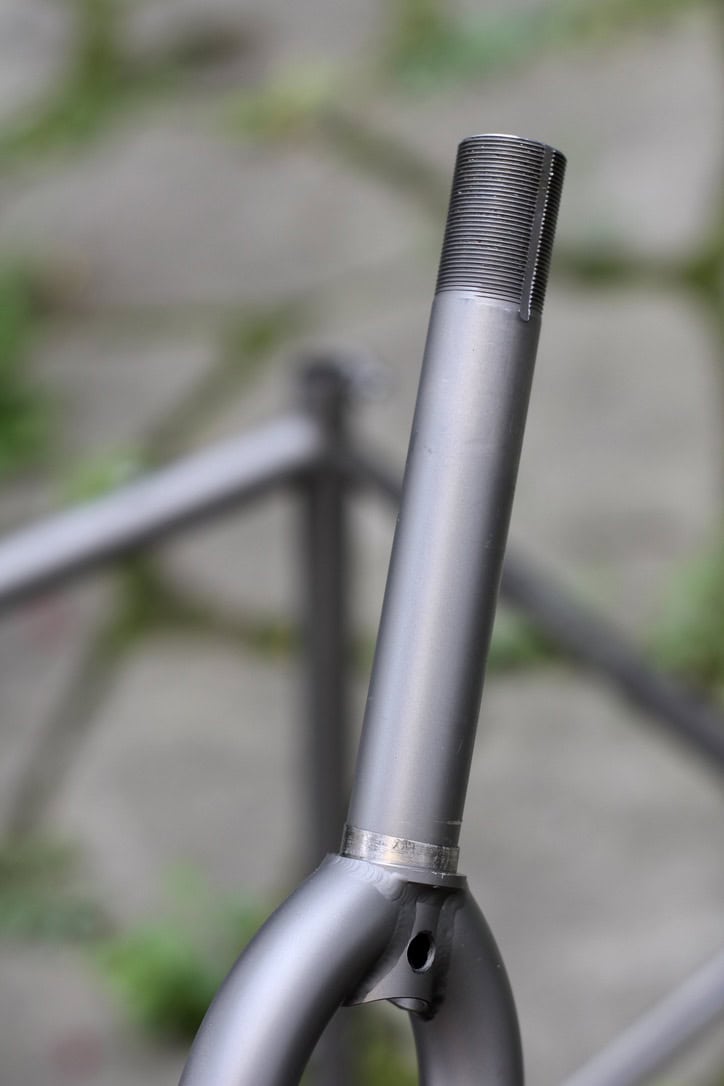

(D) fork steerer:  165 mm > BC1 thread

wheel size:        28″ 700C
front wheel:     100 mm
rear wheel:       130 mm

seatpost ø:    25,4 mm  > seatpost included
BB Width:    68 mm
thread:          BSA

Weight
frame   1.403 g
fork        448 g

condition
technically NOS; was build as a showroom bike, but never driven
frame is straight, no dents, no dings, no cracks or damages

Additional information

Weight 3 kg
