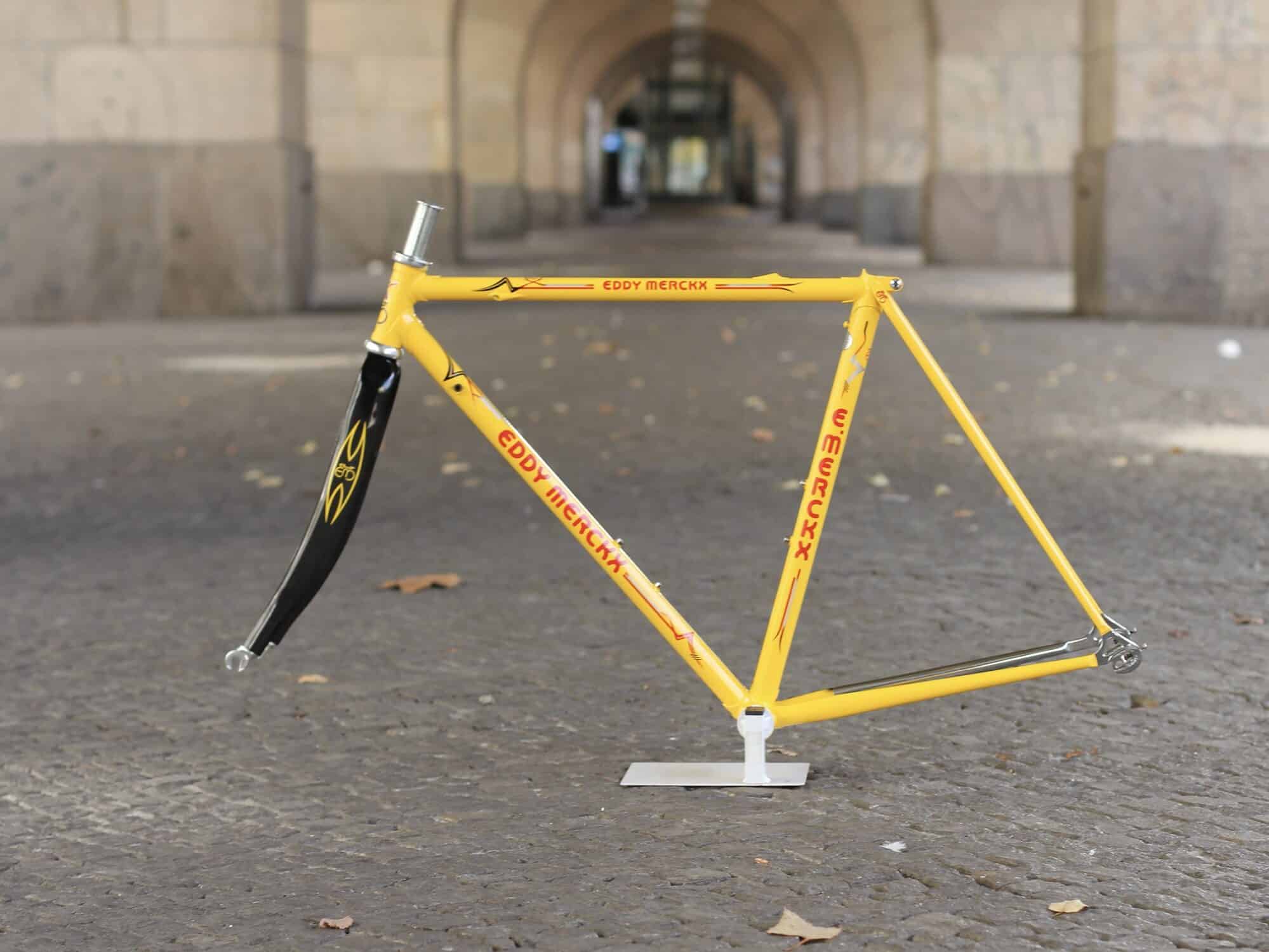

Eddy Merckx Corsa Extra Columbus SLX Frame / 49 cm / Carbon Fork

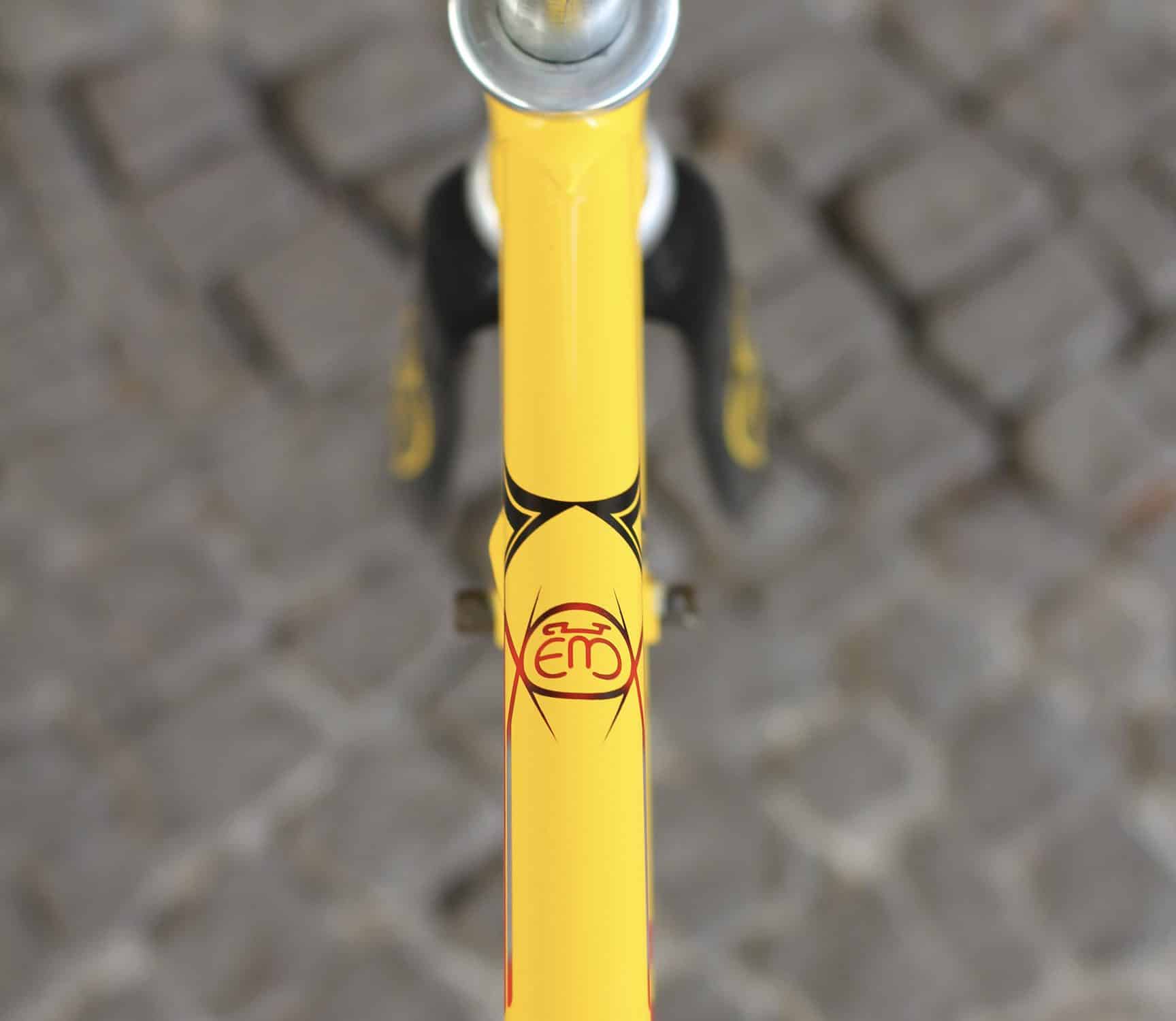

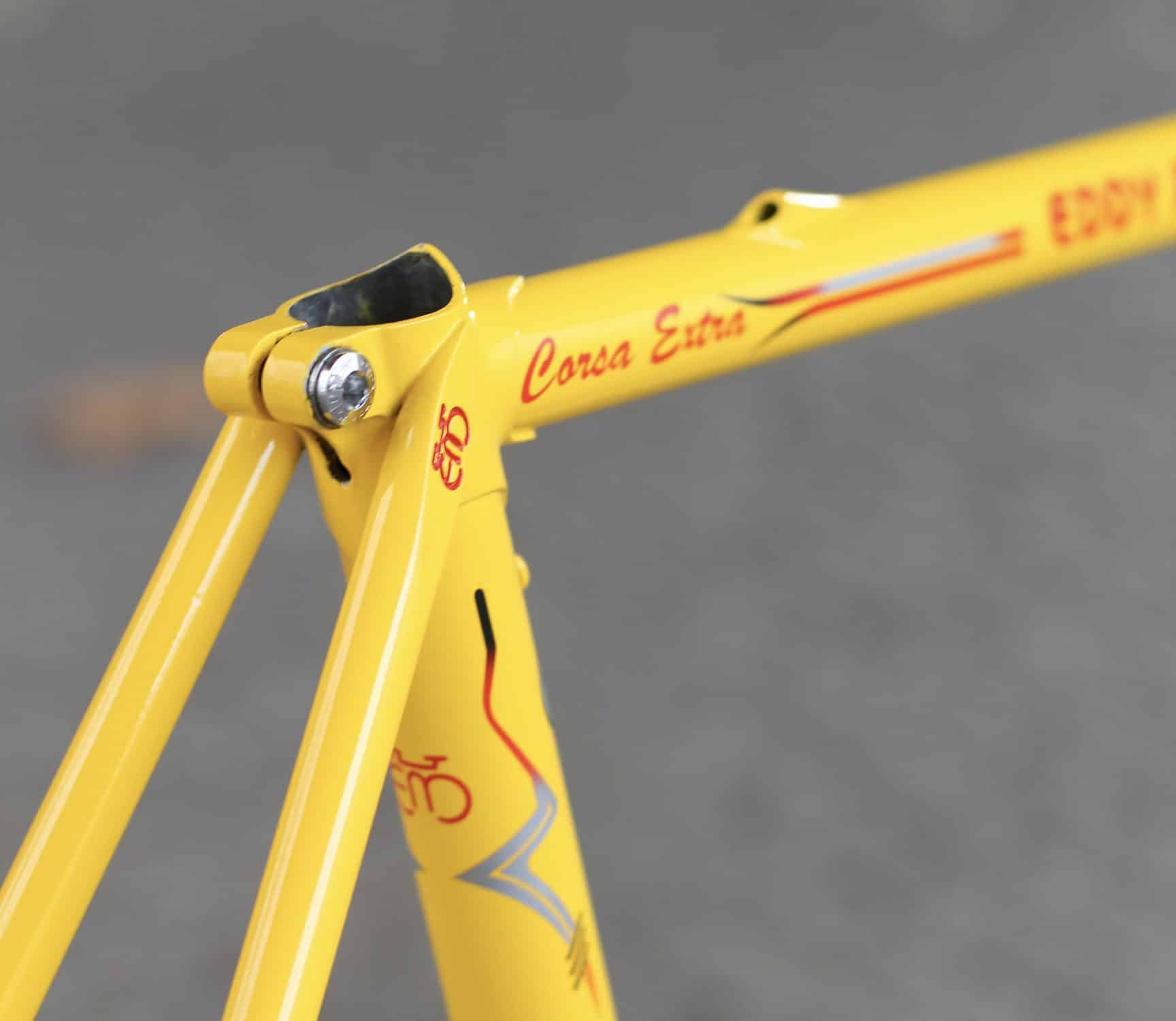

Eddy Merckx Corsa Extra frame in nice yellow, wich remind a little bit to the Team Vlanderen Paintscheme
probably made of very stiff Columbus SLX Tubes
Frame with EM Drop Outs
internal brake cable routing

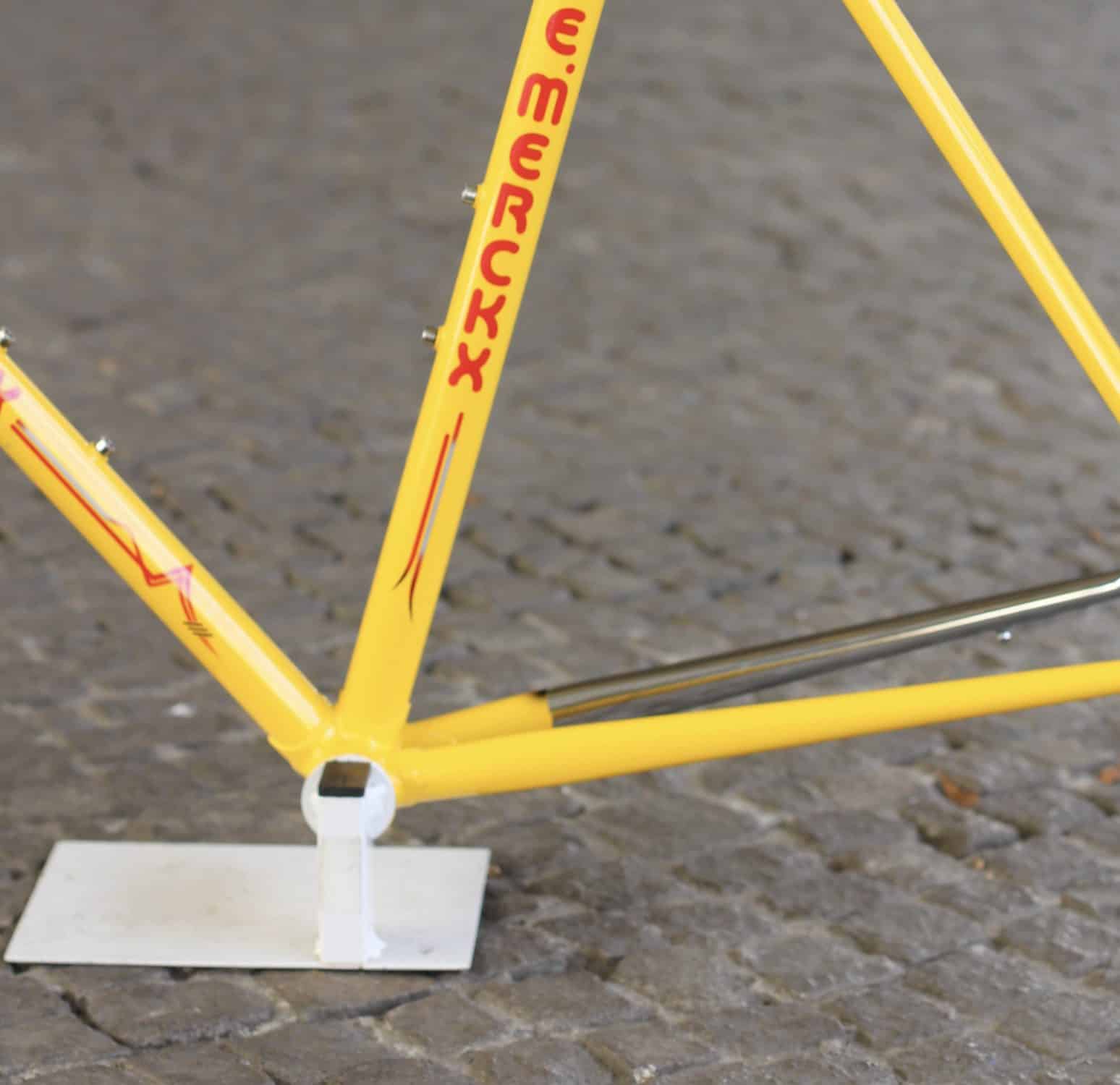

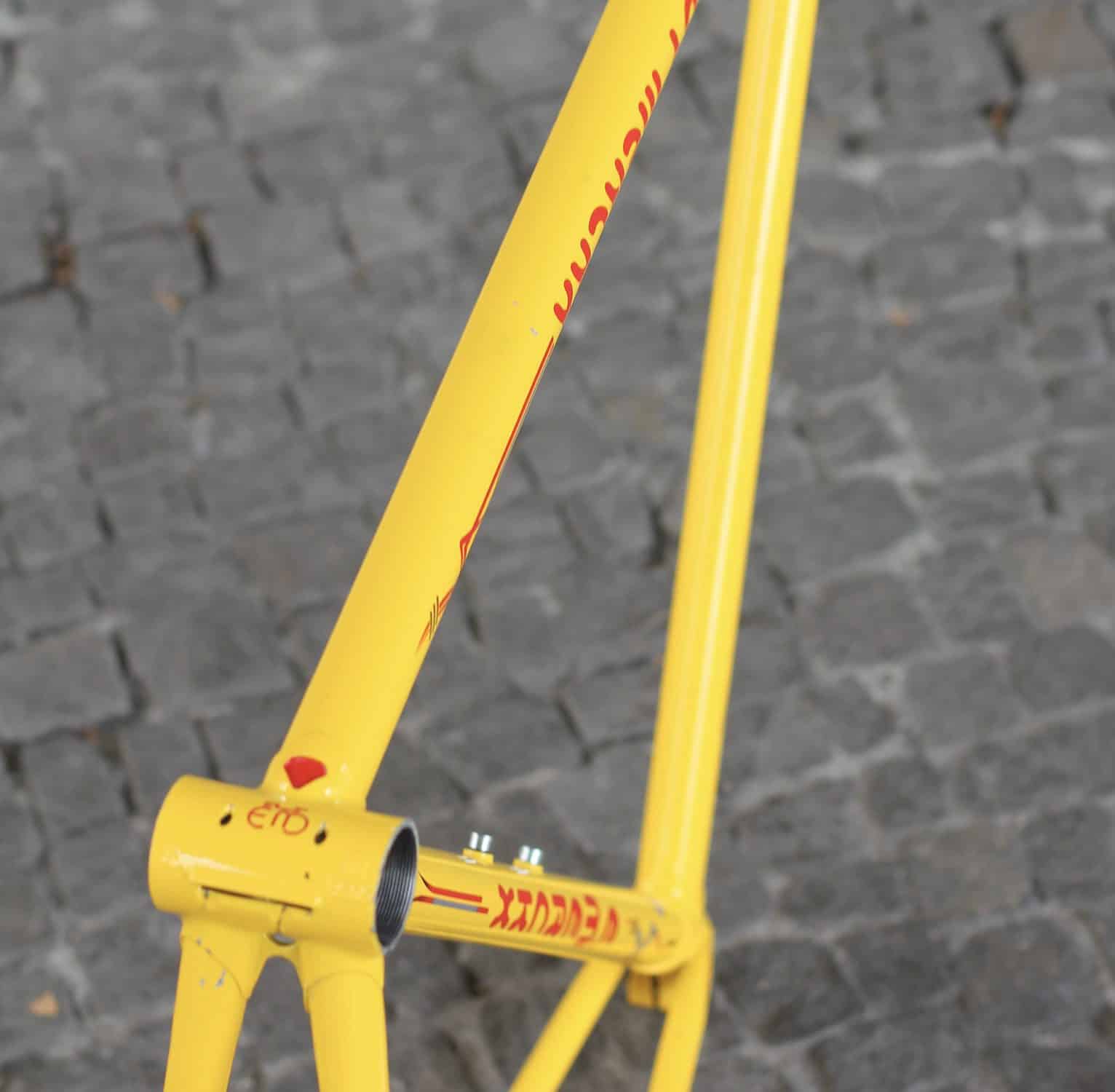

Shifting cable routing under the Bottom Bracket

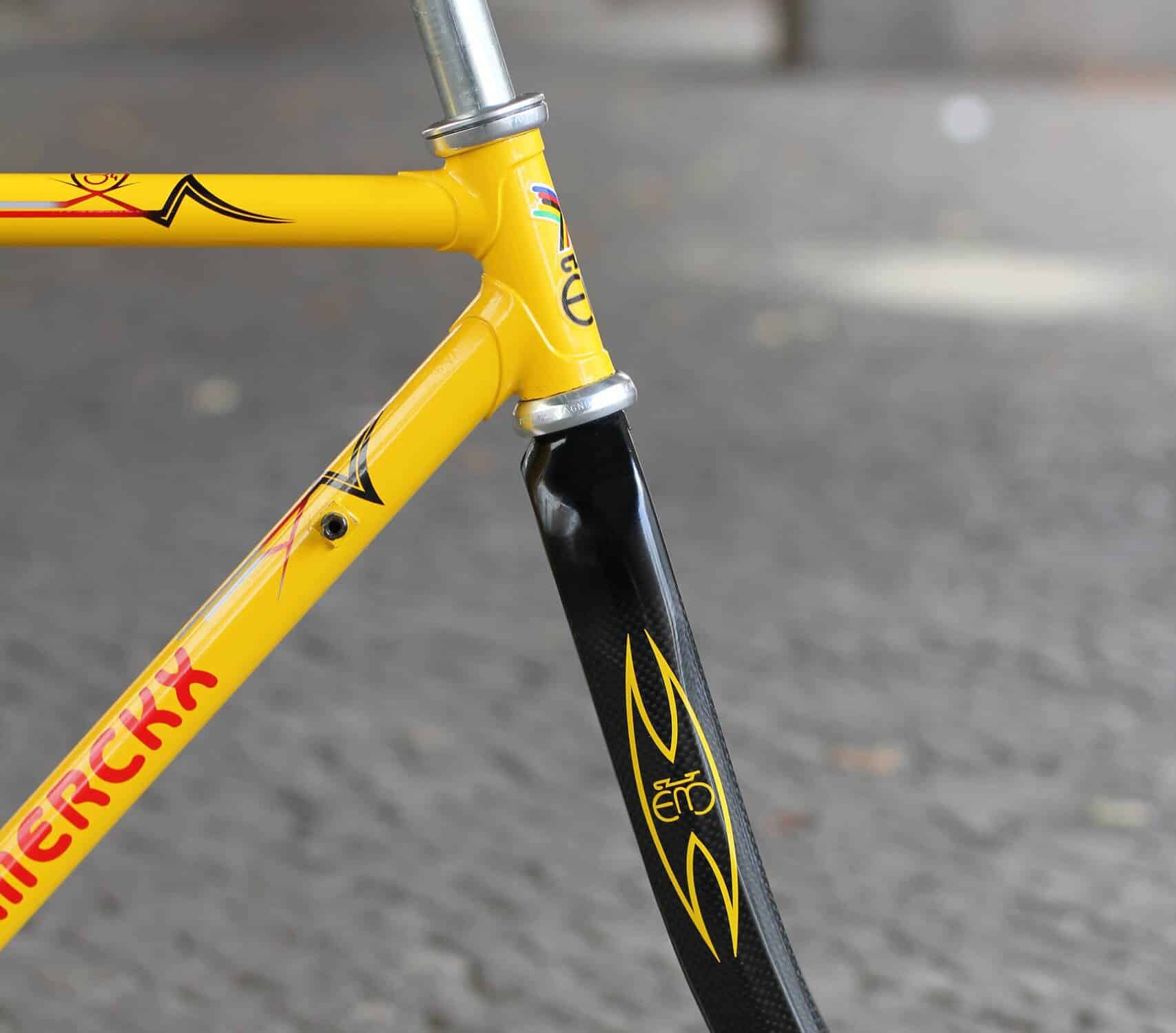

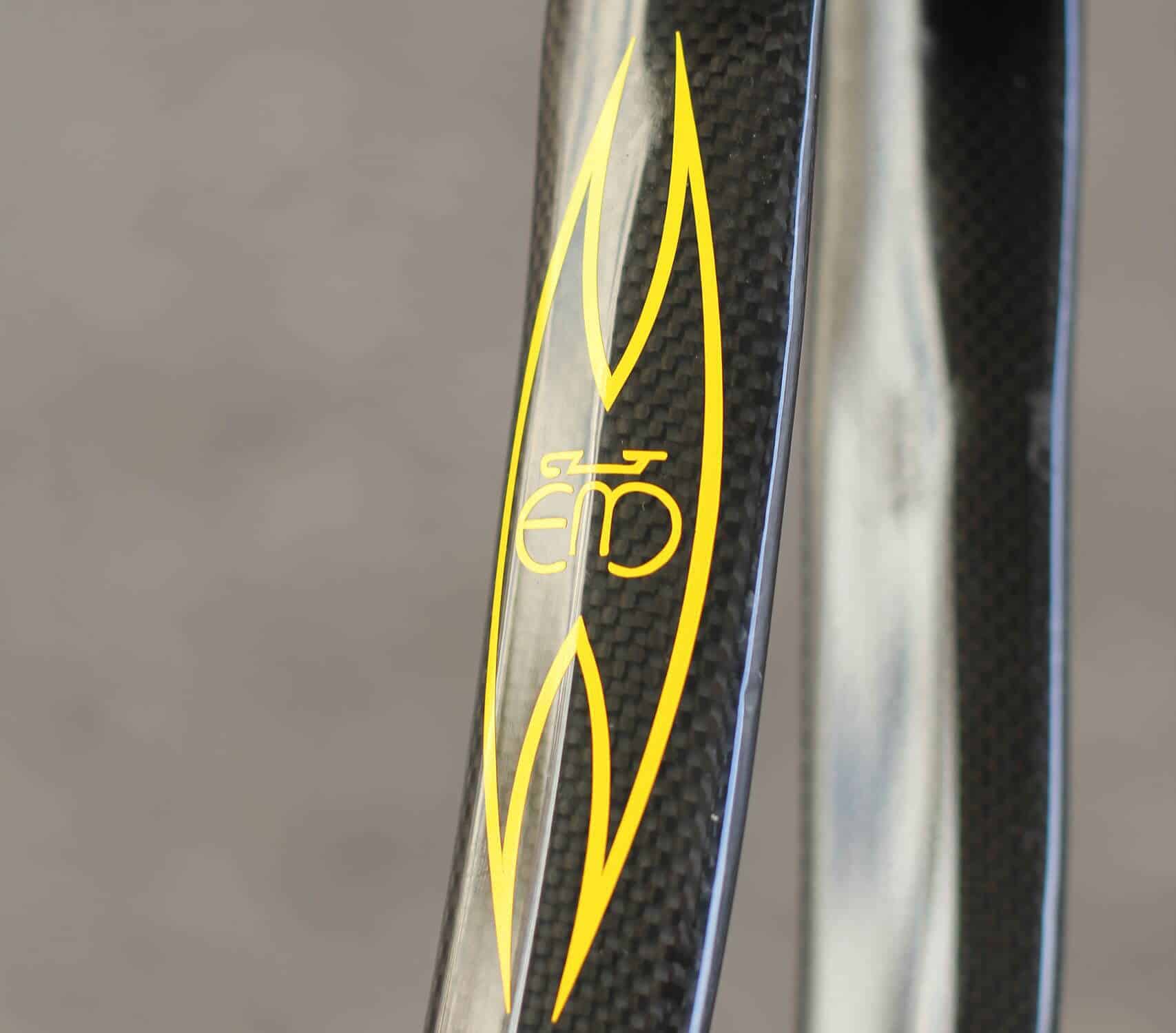

Fork is Carbon with Alloy Ahead Steerer > There is a EM Sticker on it, but I’m not 100% sure, that the fork originally came with the frame

Out of stock

Out of stock

SKU: 2373 Categories: , Tags: , , , , , , ,

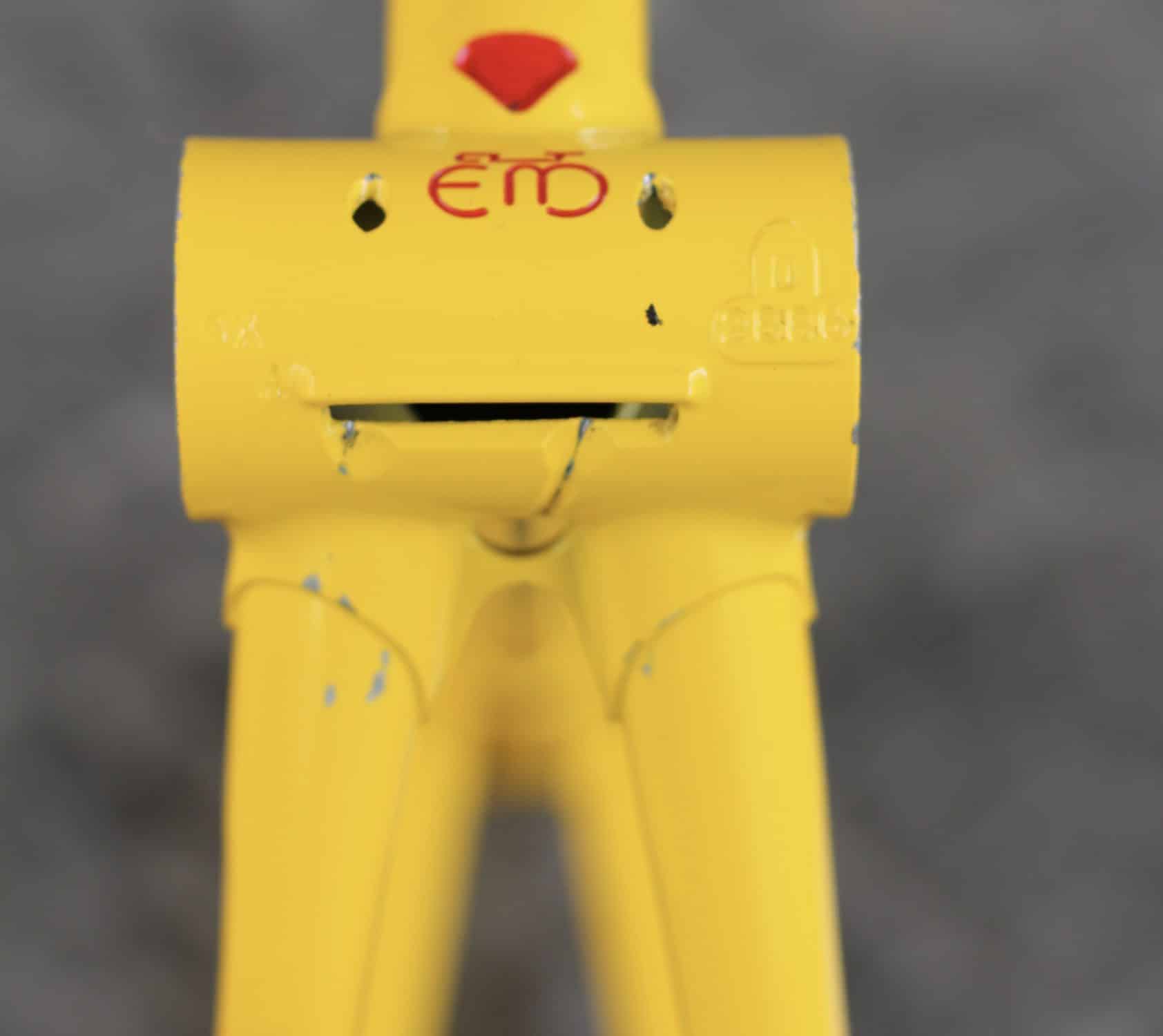

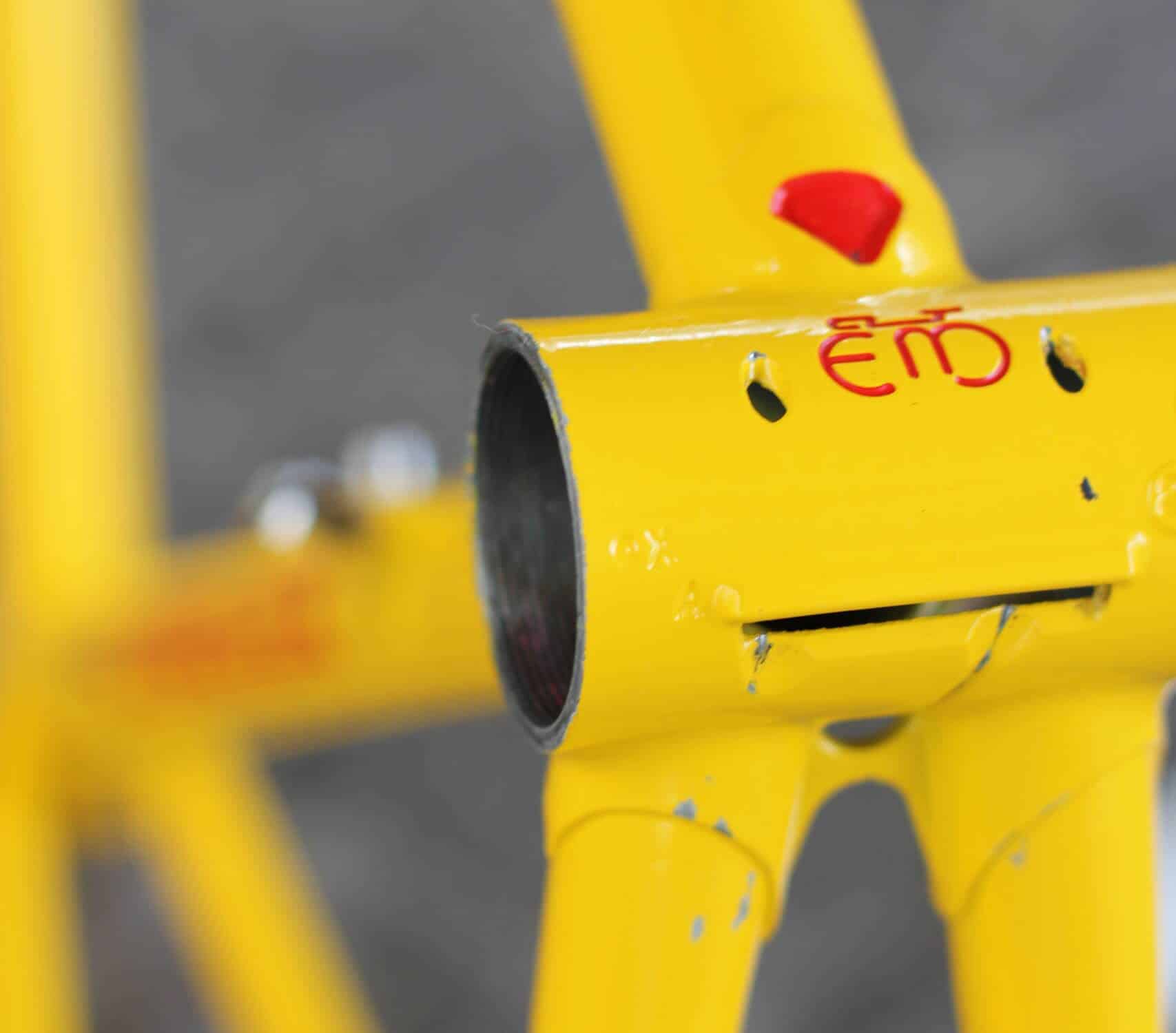

Bottom Bracket “9XA” “D2886”

decals red (sprayed)

(A) seattube: 49 cm (C/C) 50 cm (C/T)
(B) toptube:   51 cm (C/C)
(C) headtube:  89 mm

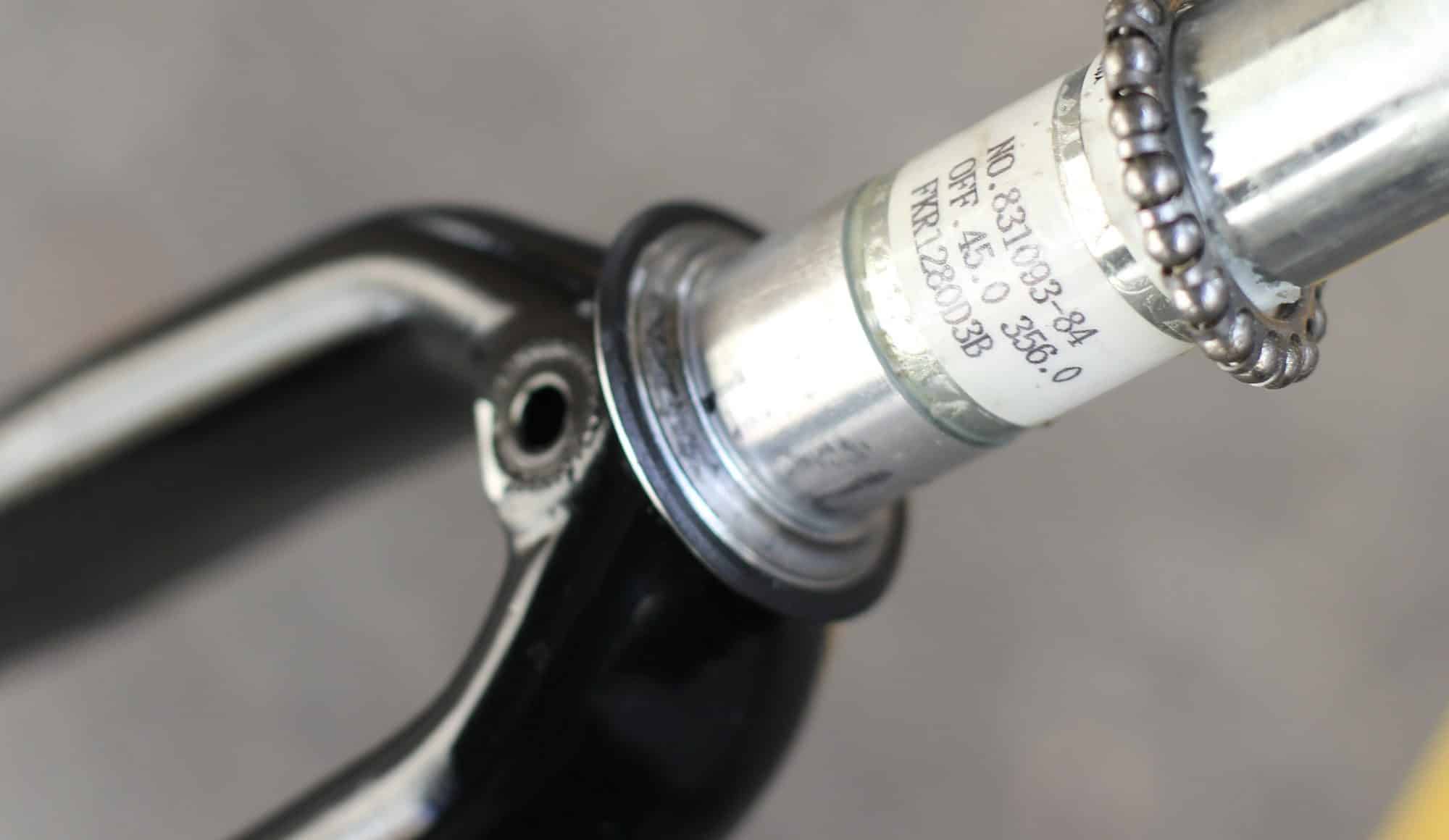

(D) fork steerer: 170 mm > Ahead

front wheel: 100 mm
rear wheel:   130 mm
wheelsize:    28″ 700C

seatpost ø: 27,2 mm
BB Width: 70 mm
thread:    ITA 36×24

Weight: 2.608 g
frame 2.005 g
fork    603 g

frame is straight, no dents, no dings, no cracks or damages
paintjob in very good condition, some minor paint chips from use

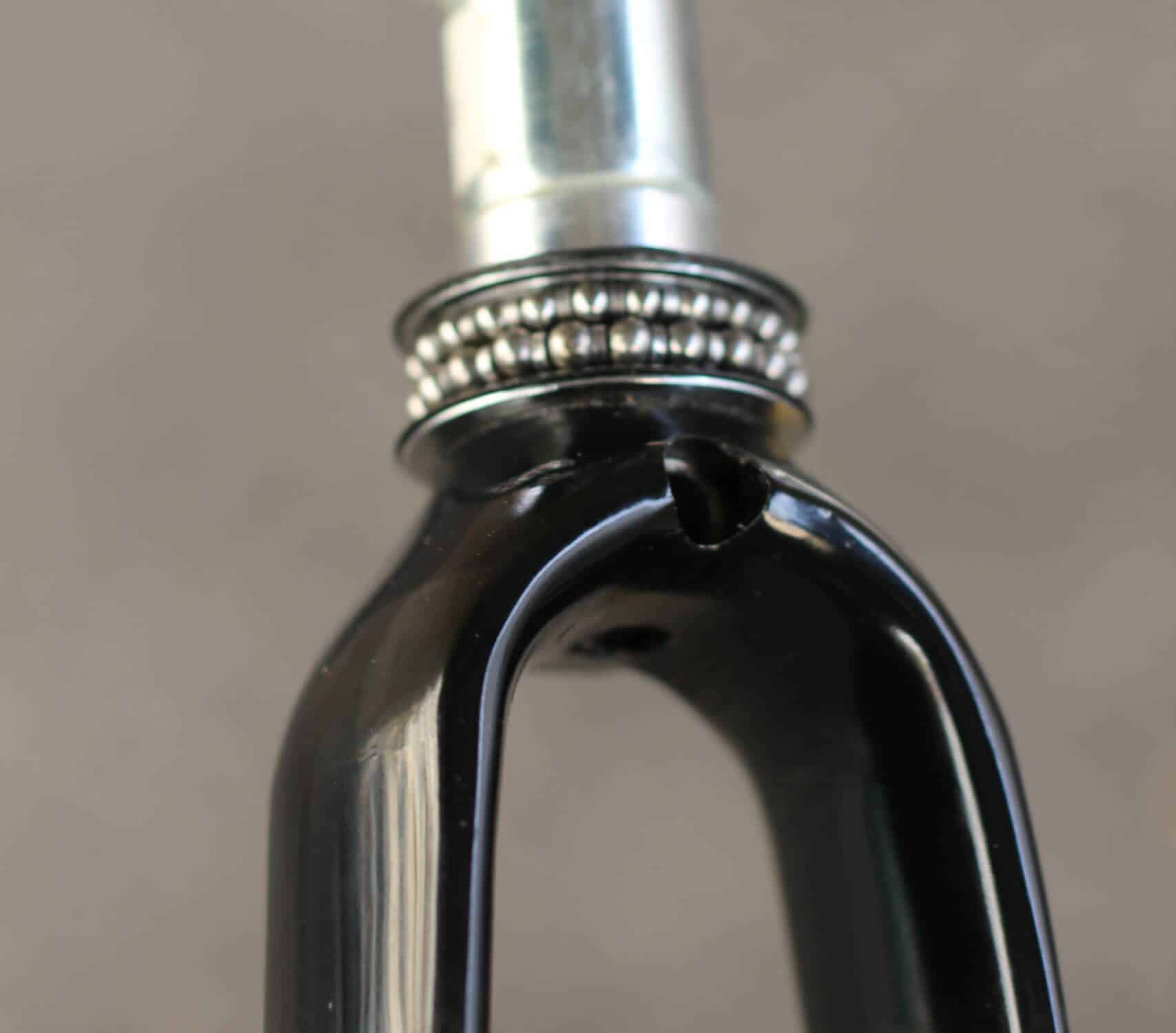

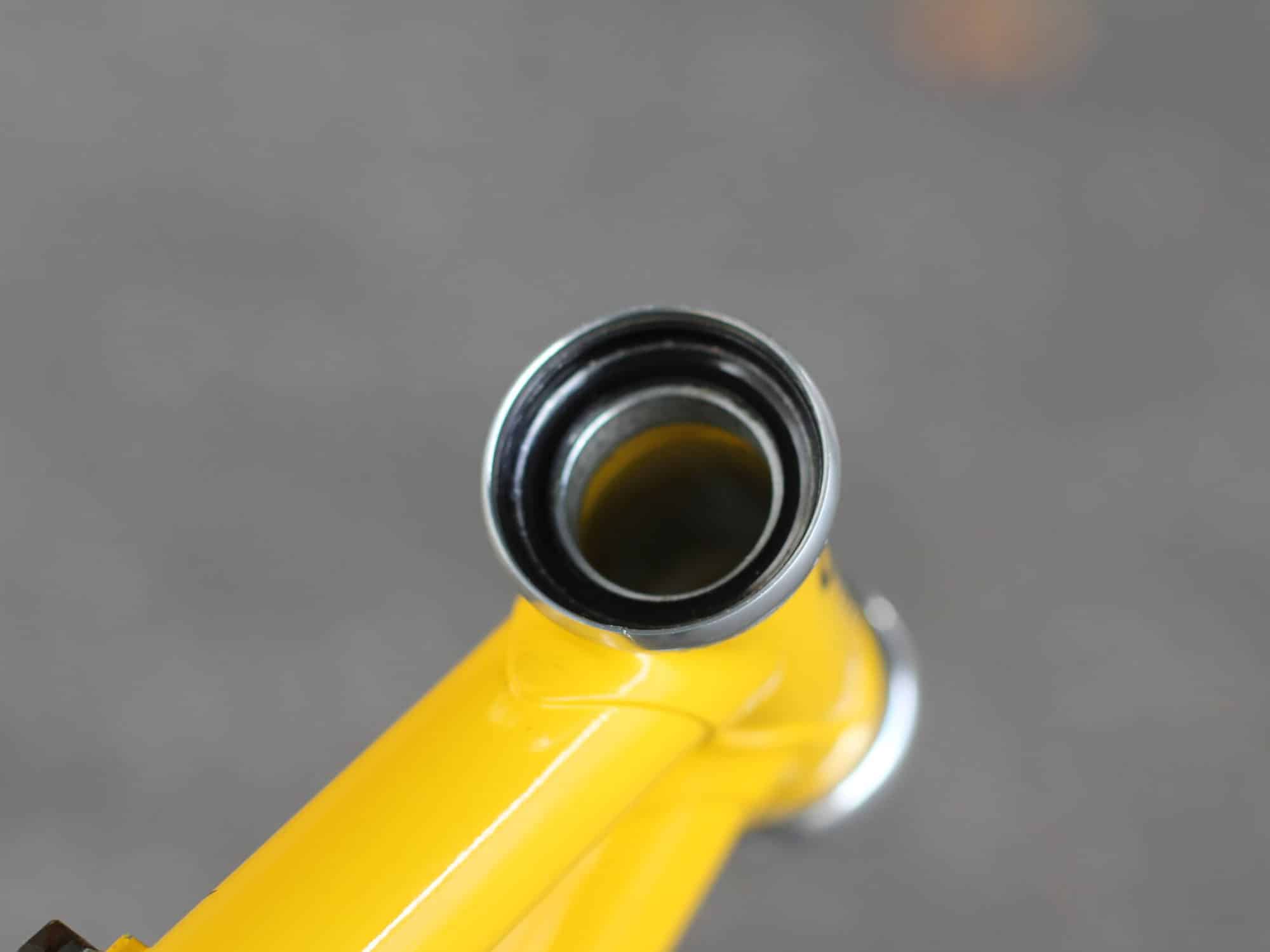

comes with the Campagnolo Chorus Headset > upper cone slightly damaged; can be used, but should be changed.

Additional information

Weight2.7 kg
