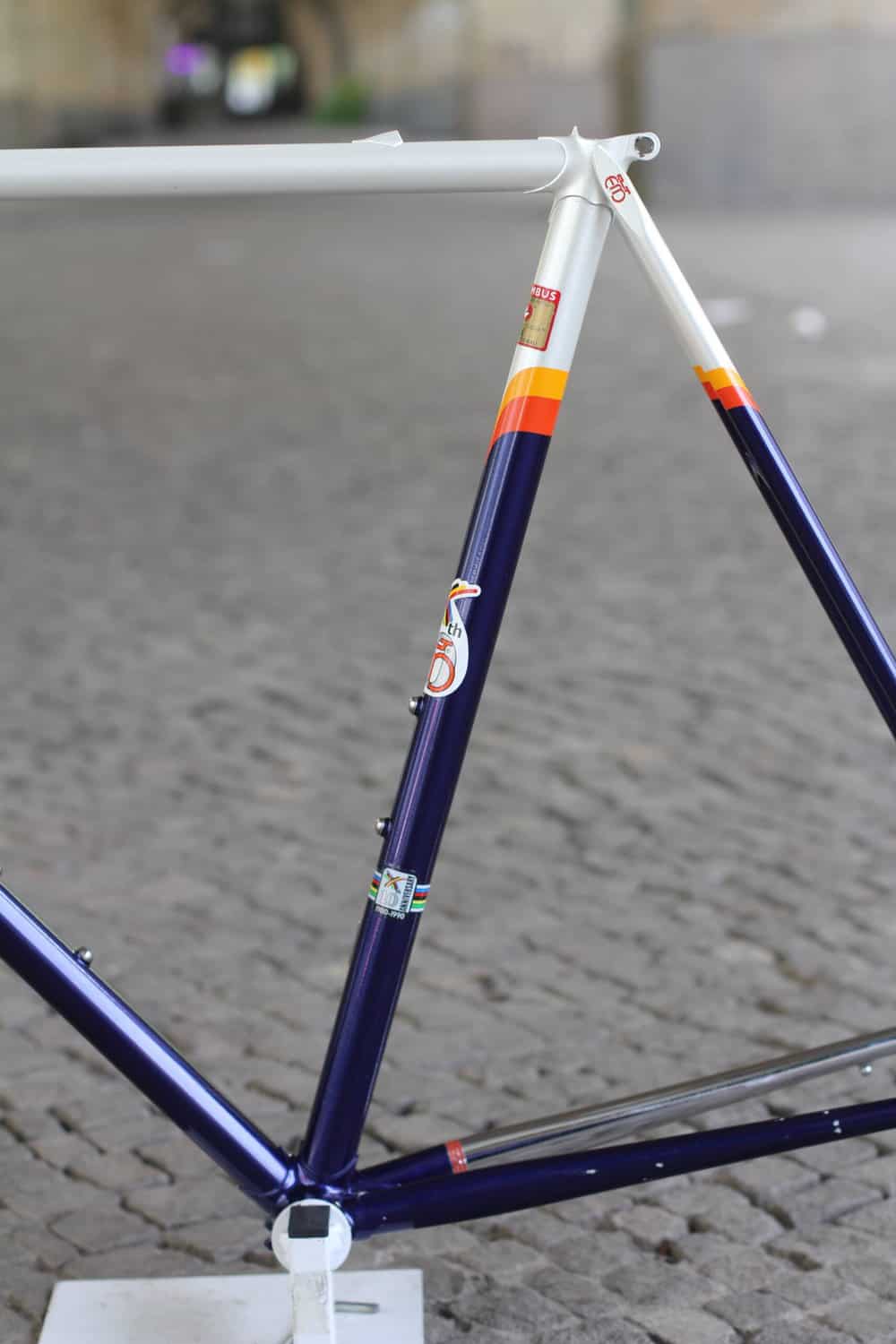

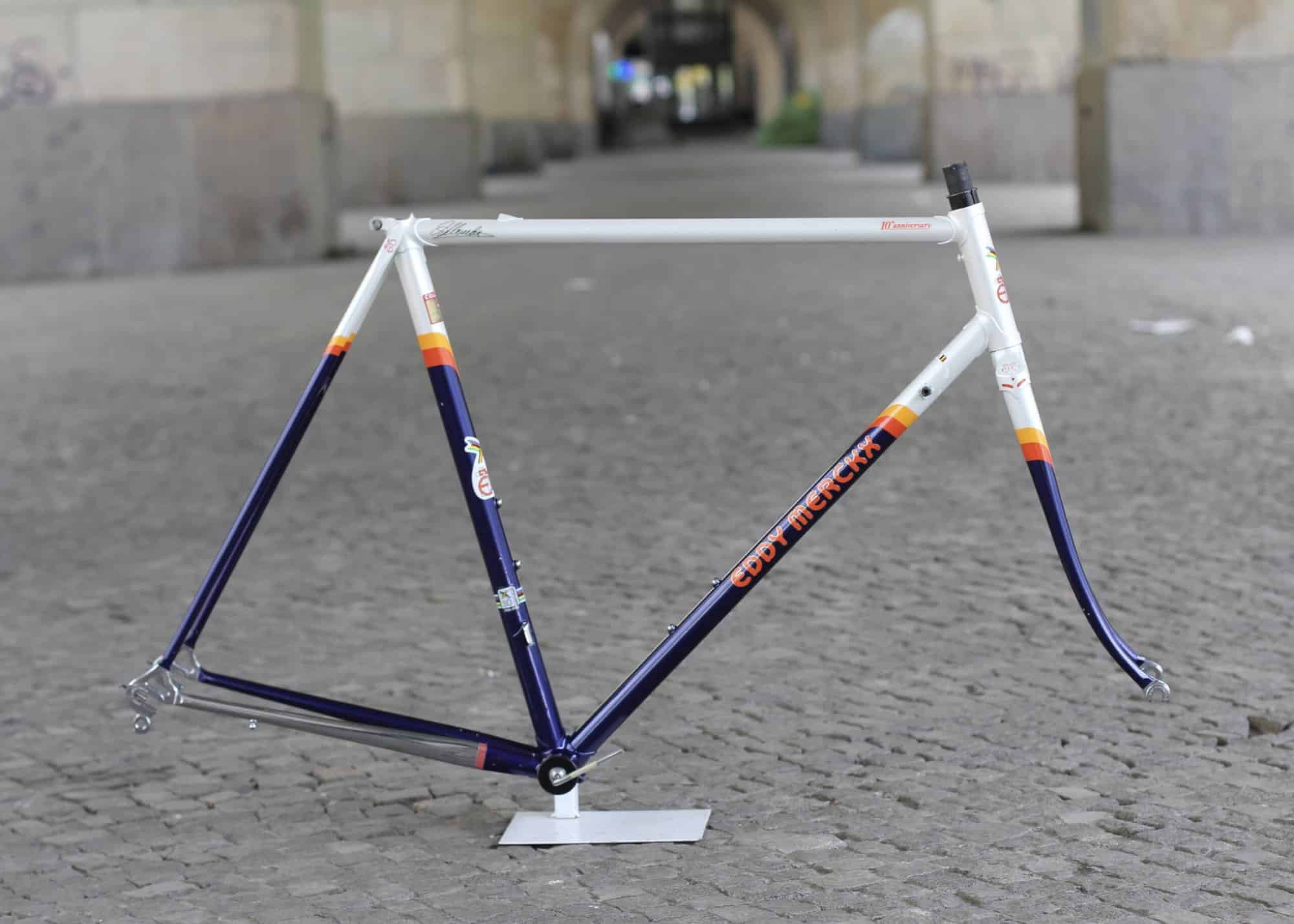

Eddy Merckx Corsa Extra 10th Anniversary Frame / 56 cm

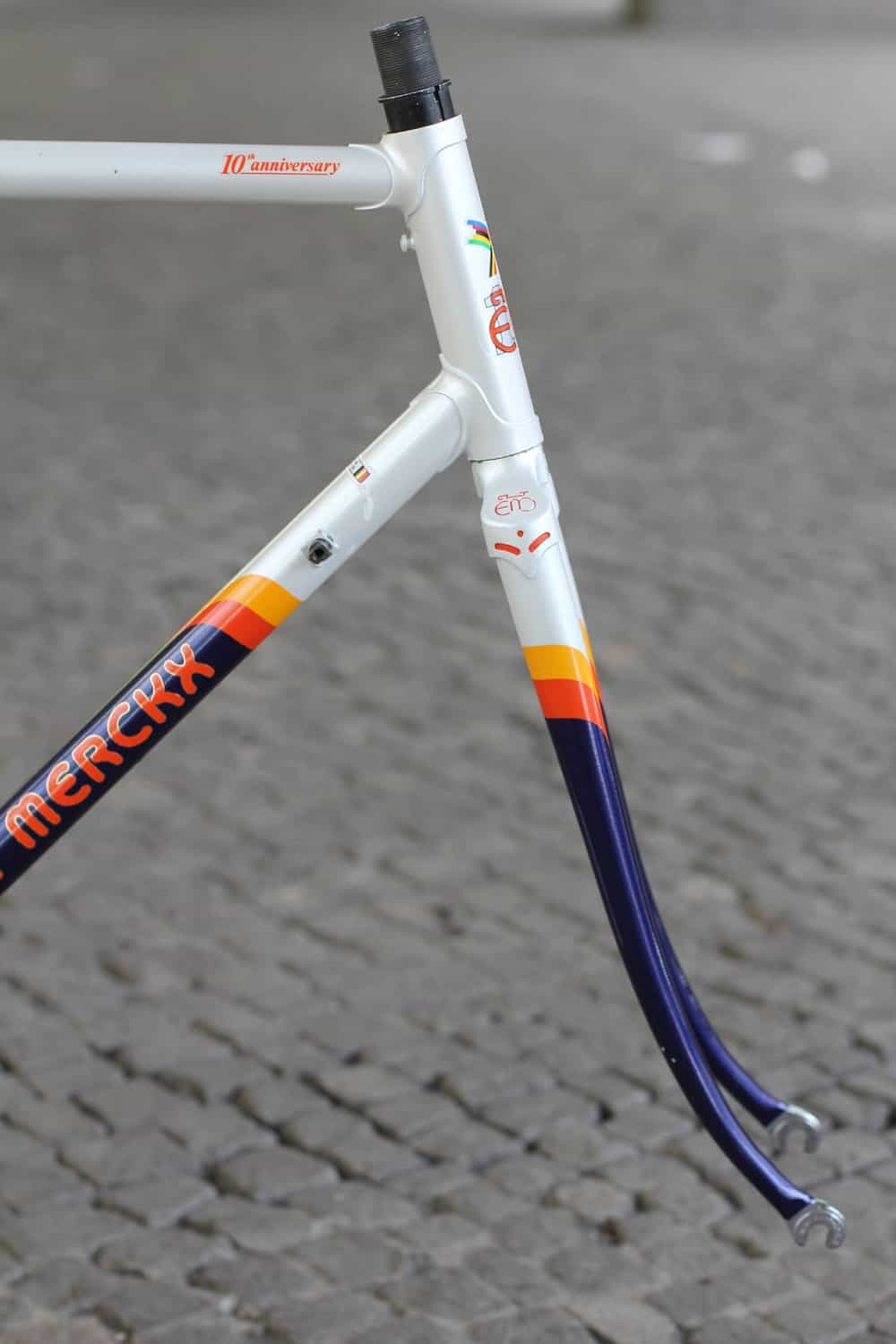

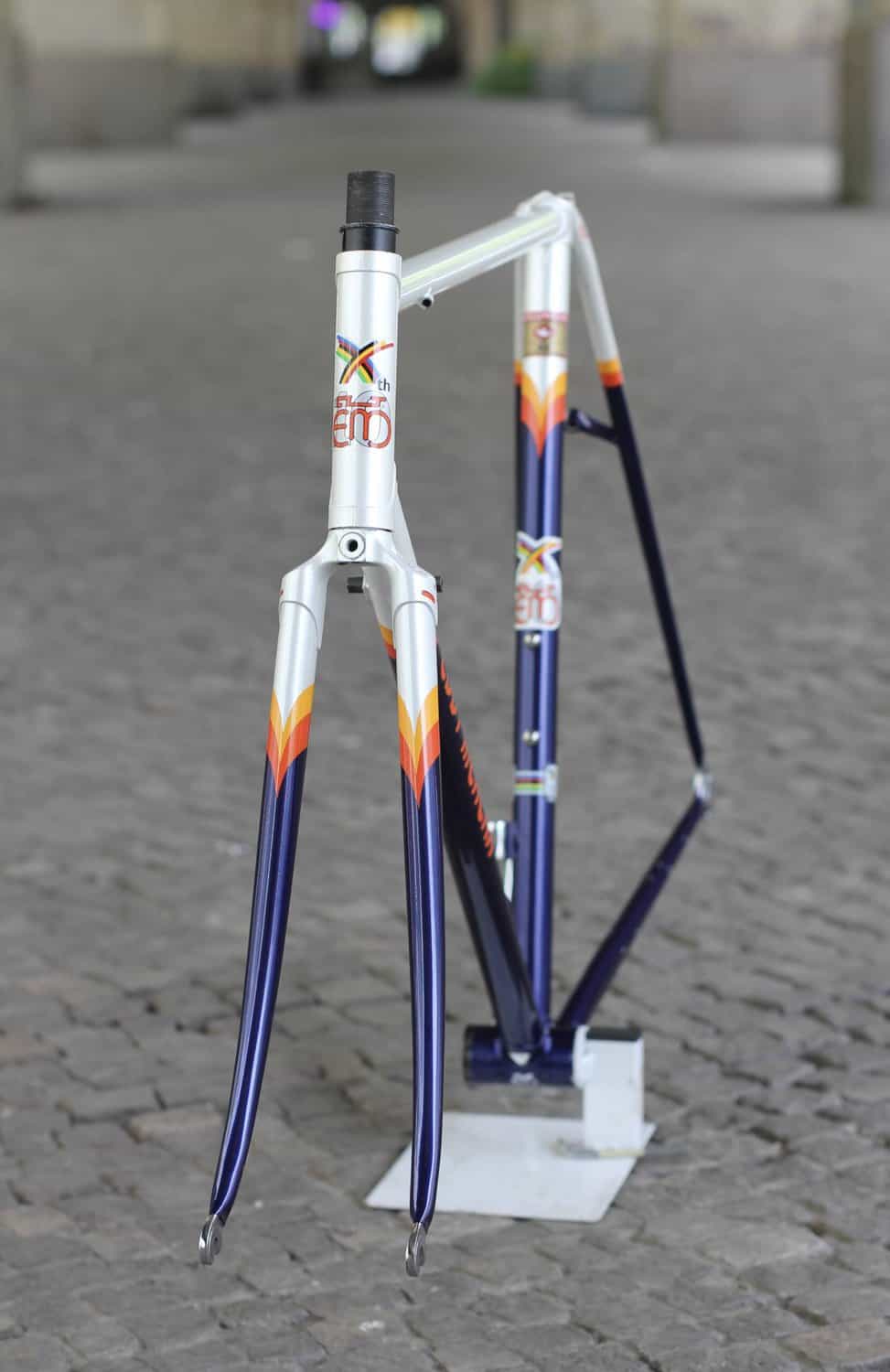

Eddy Merckx Corsa Extra frame in 10th Anniversary Paintscheme from 1990

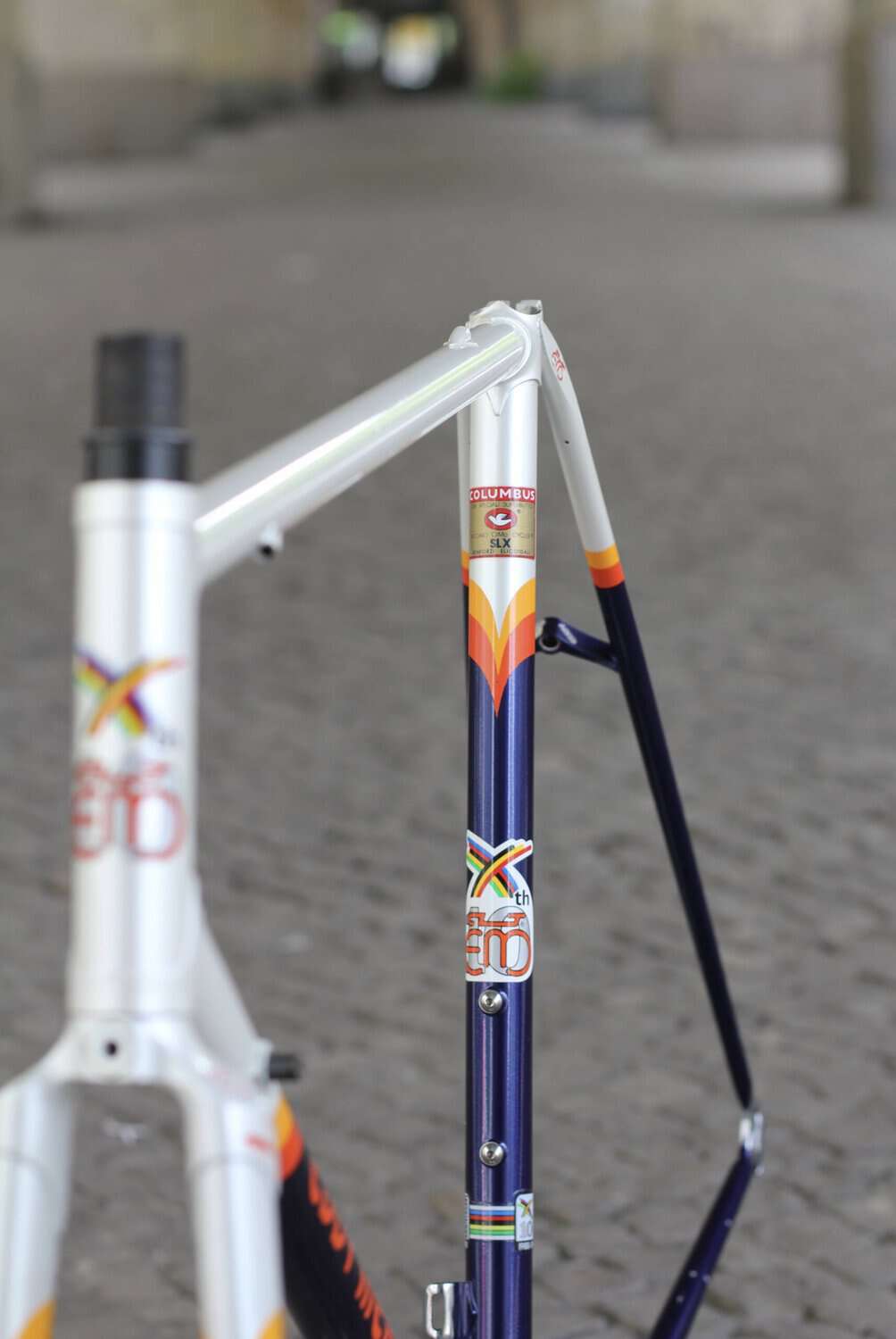

made of very stiff Columbus SLX Tubes

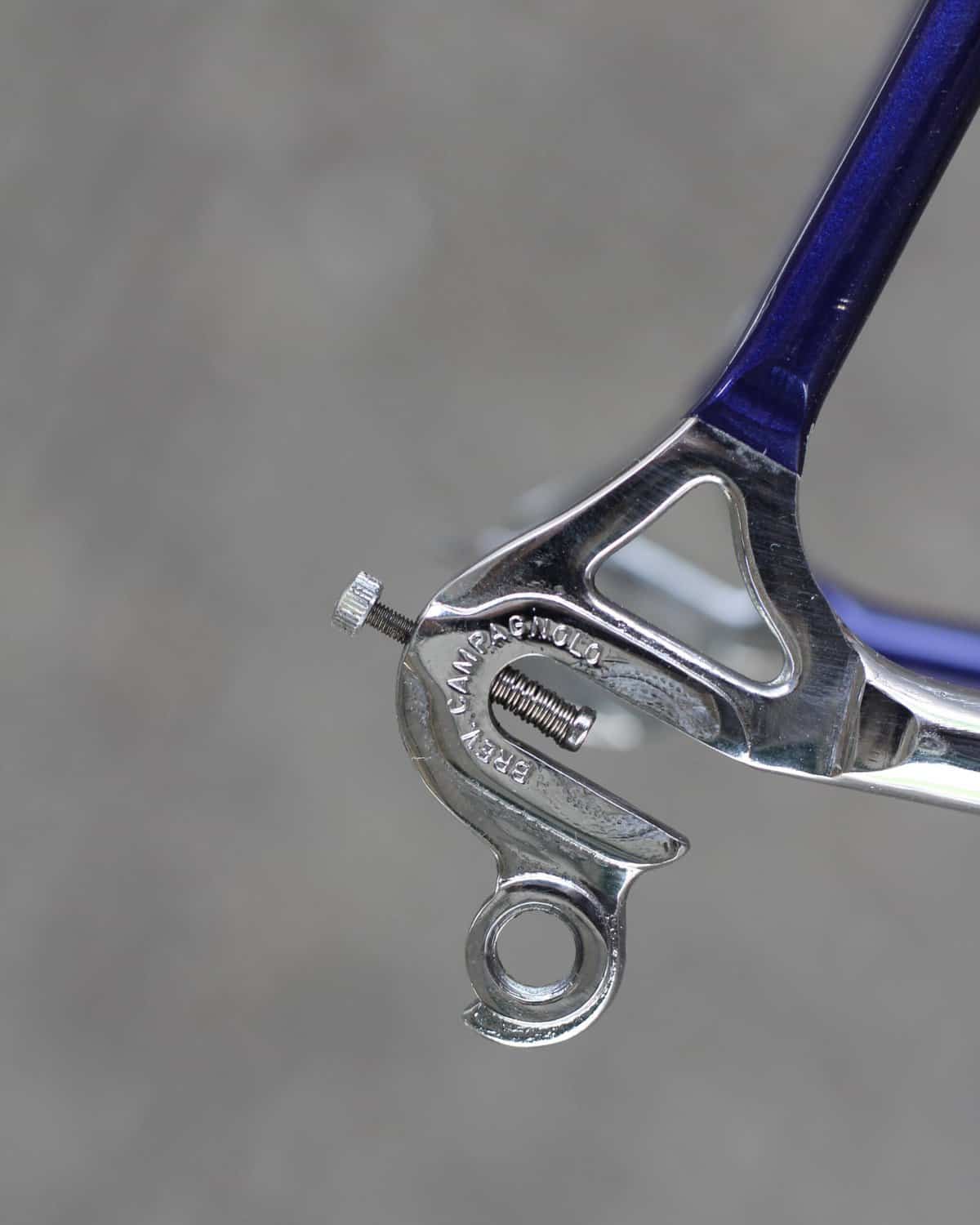

Frame Campagnolo drop outs

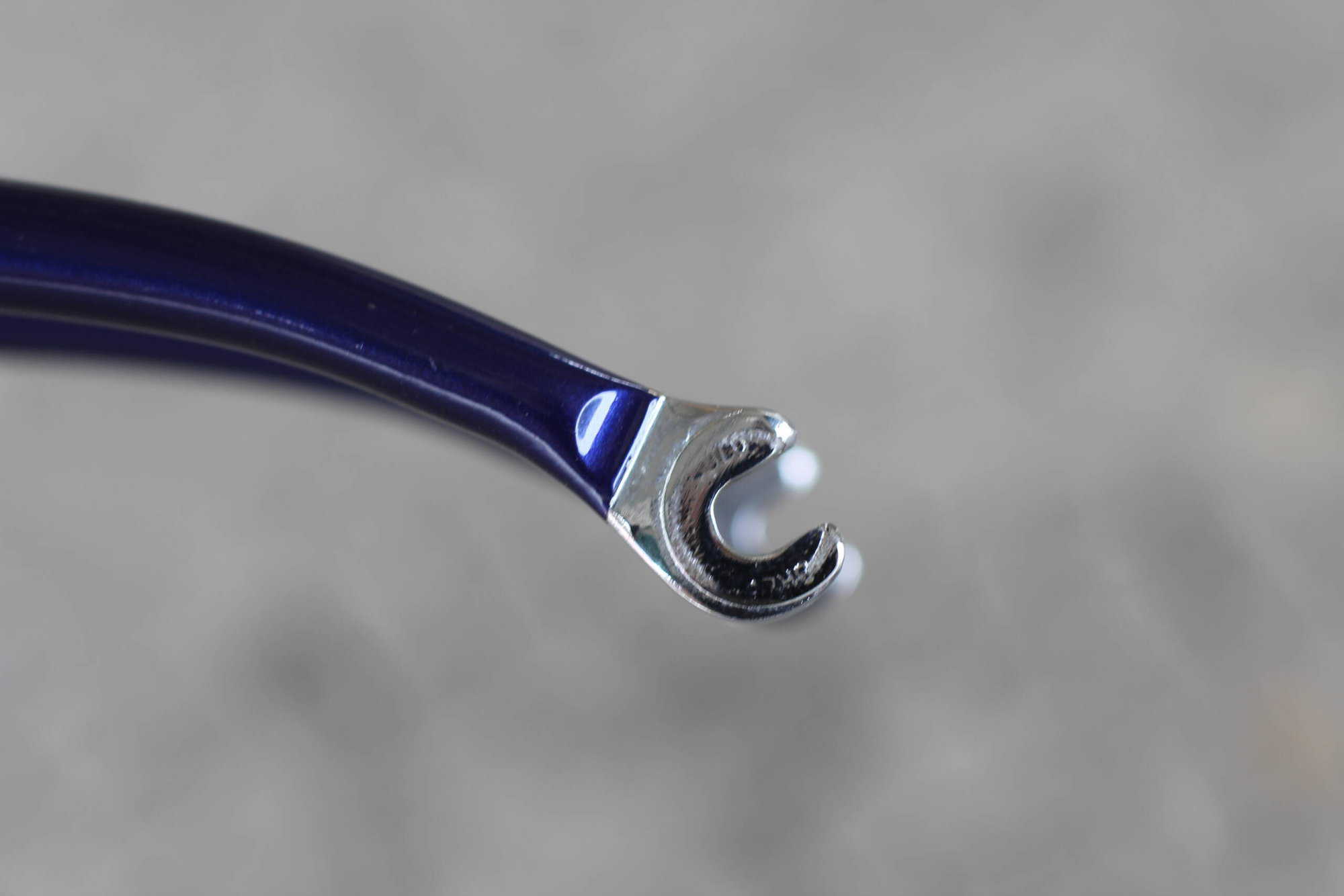

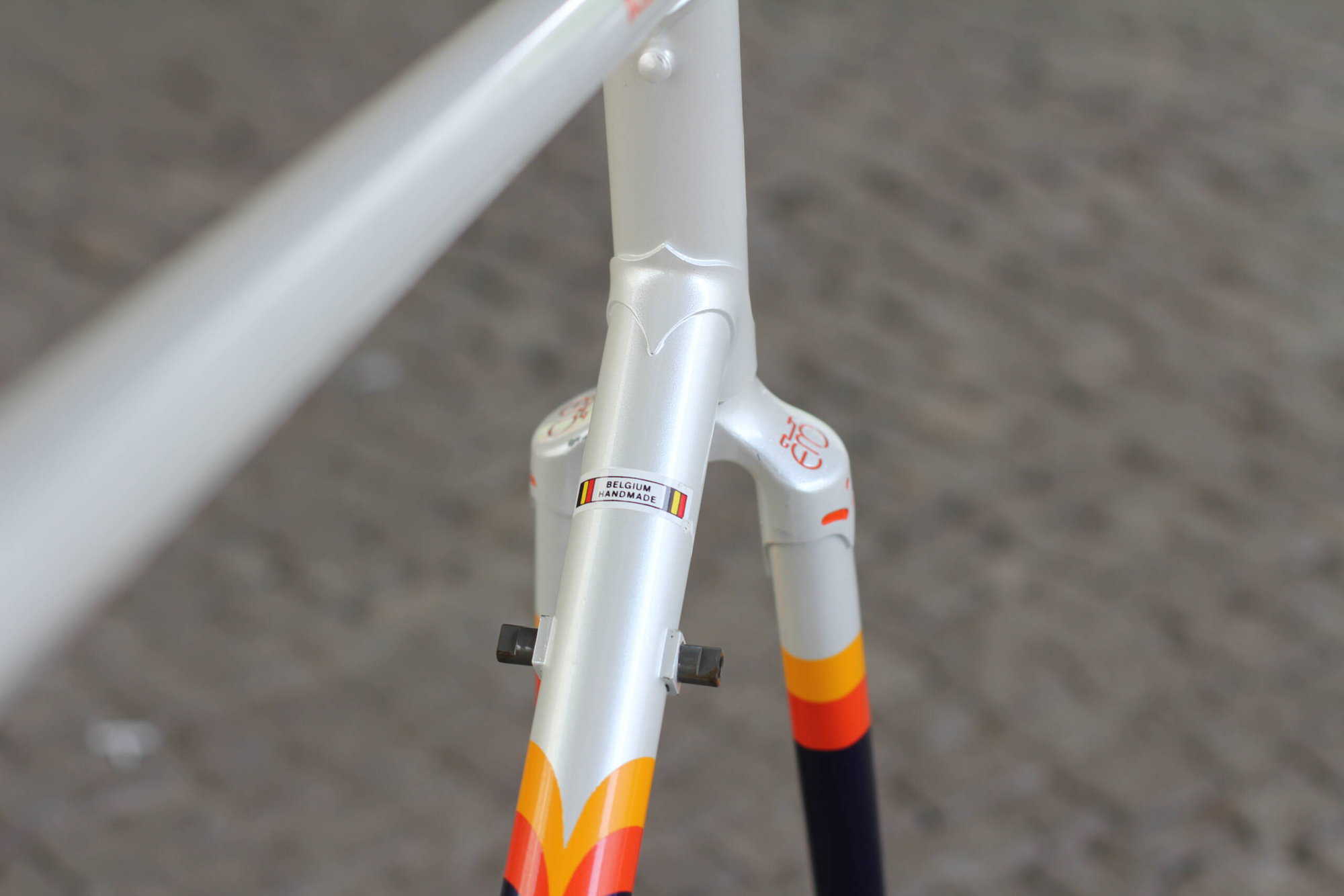

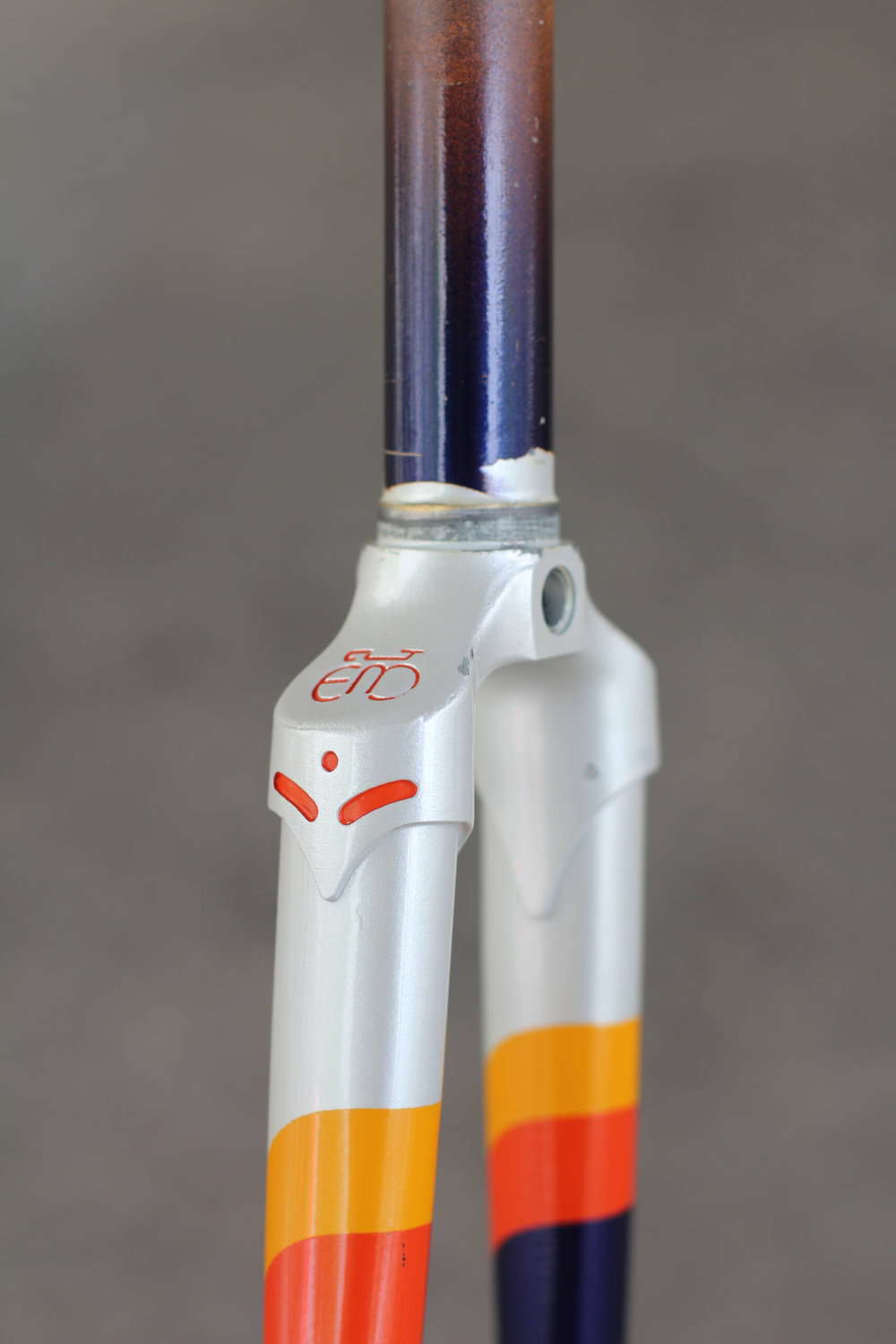

Painted fork with Campagnolo drop outs
internal brake cable routing

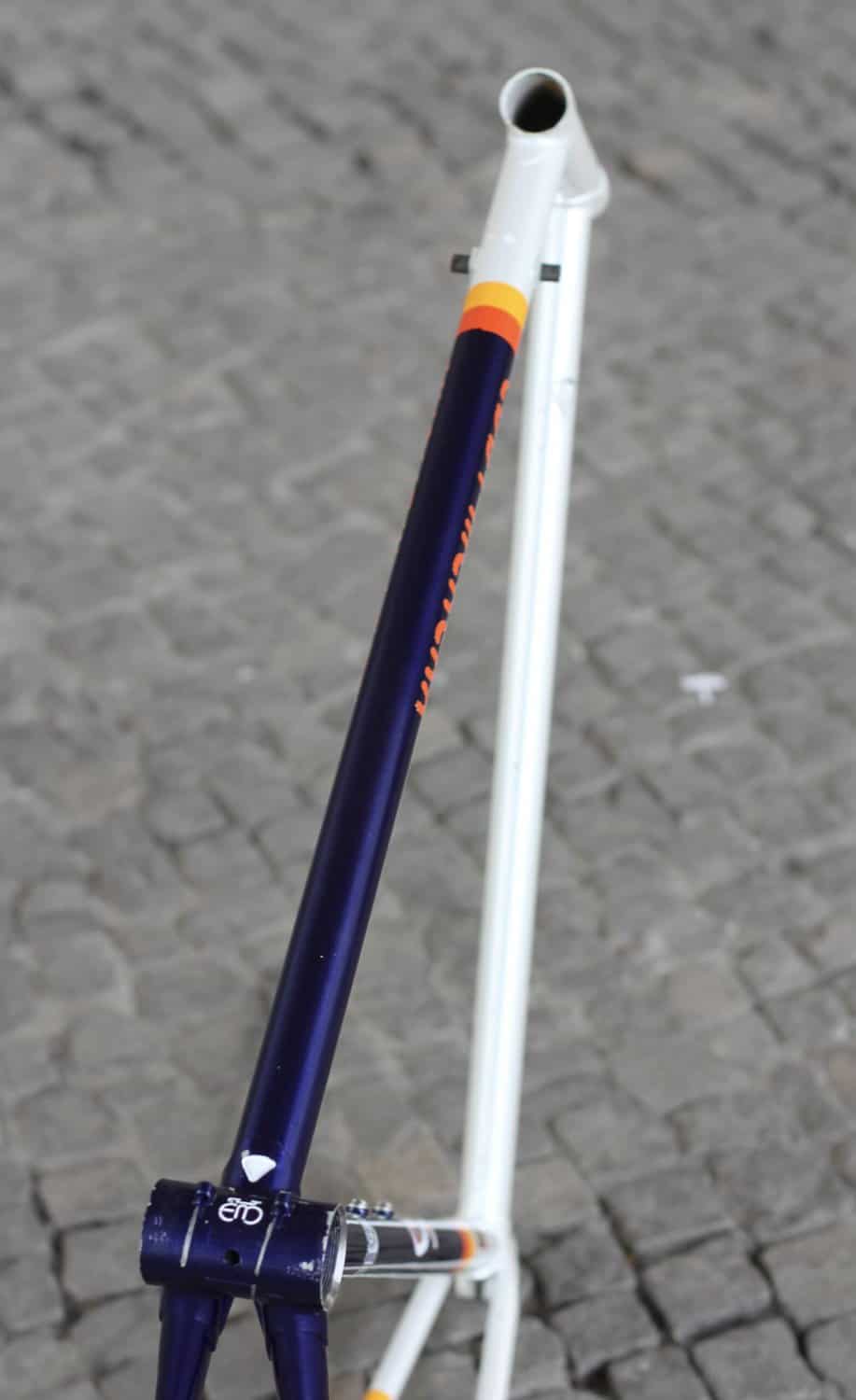

Shifting cable routing under the Bottom Bracket

Out of stock

Out of stock

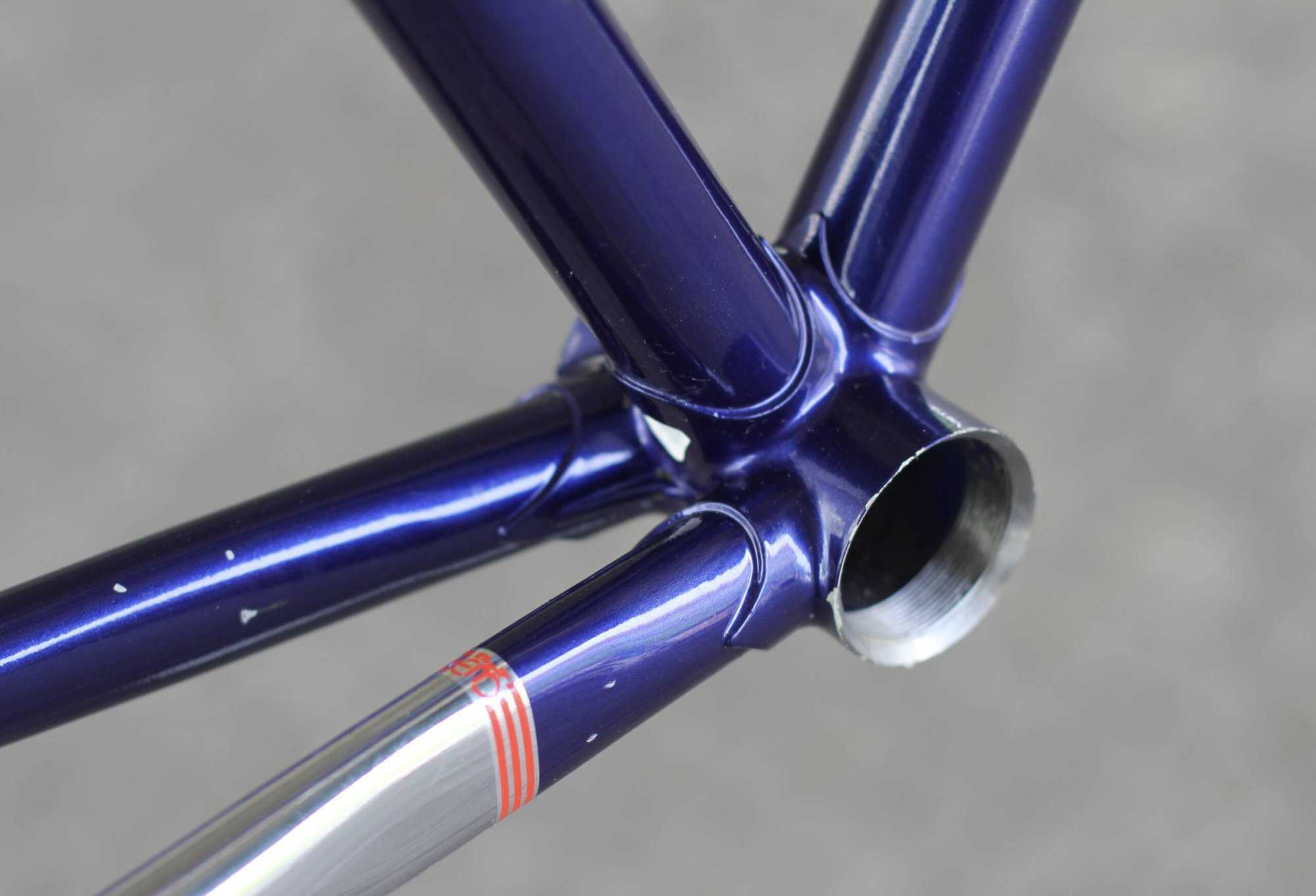

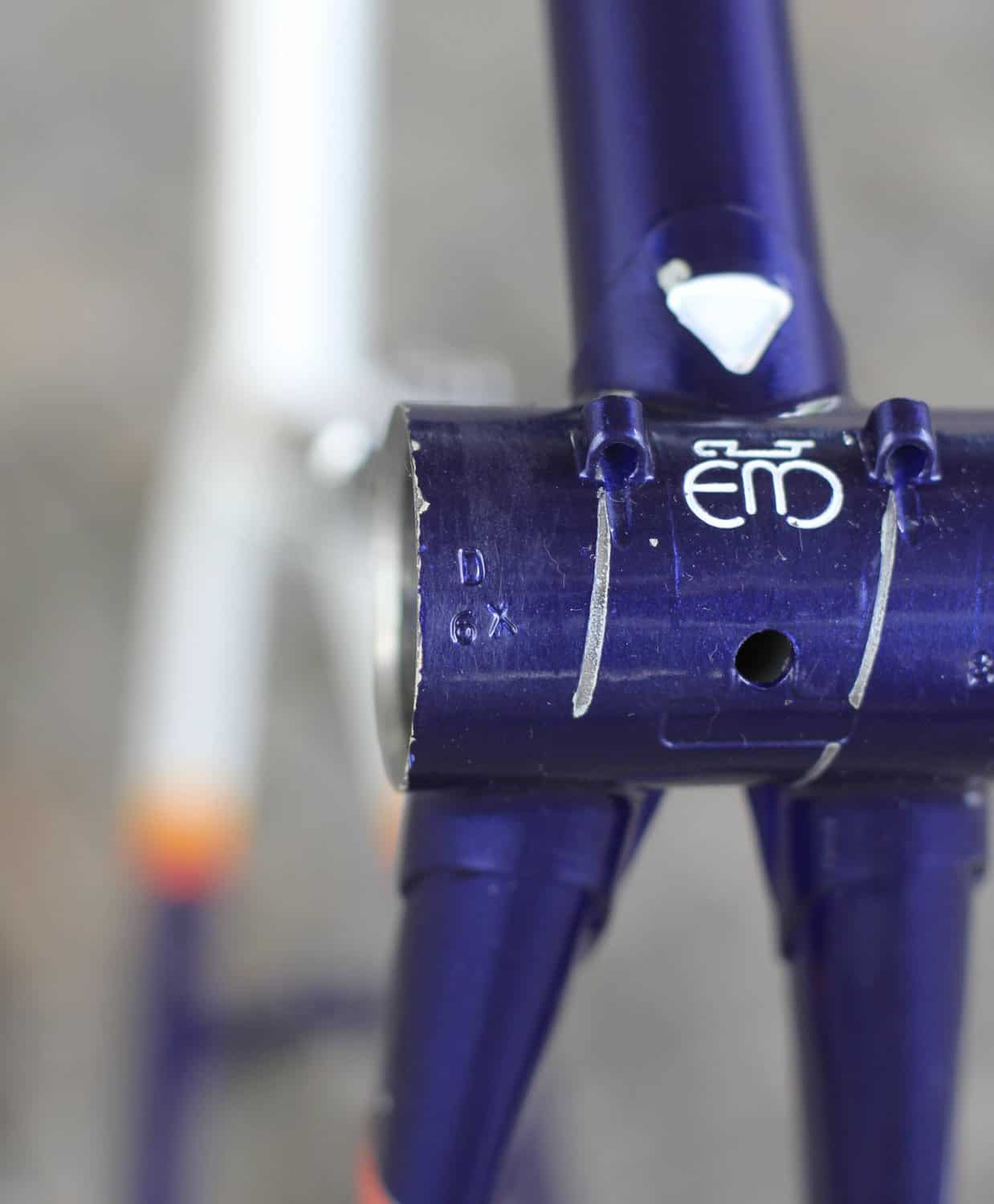

Bottom Bracket “B8725” “D6X“

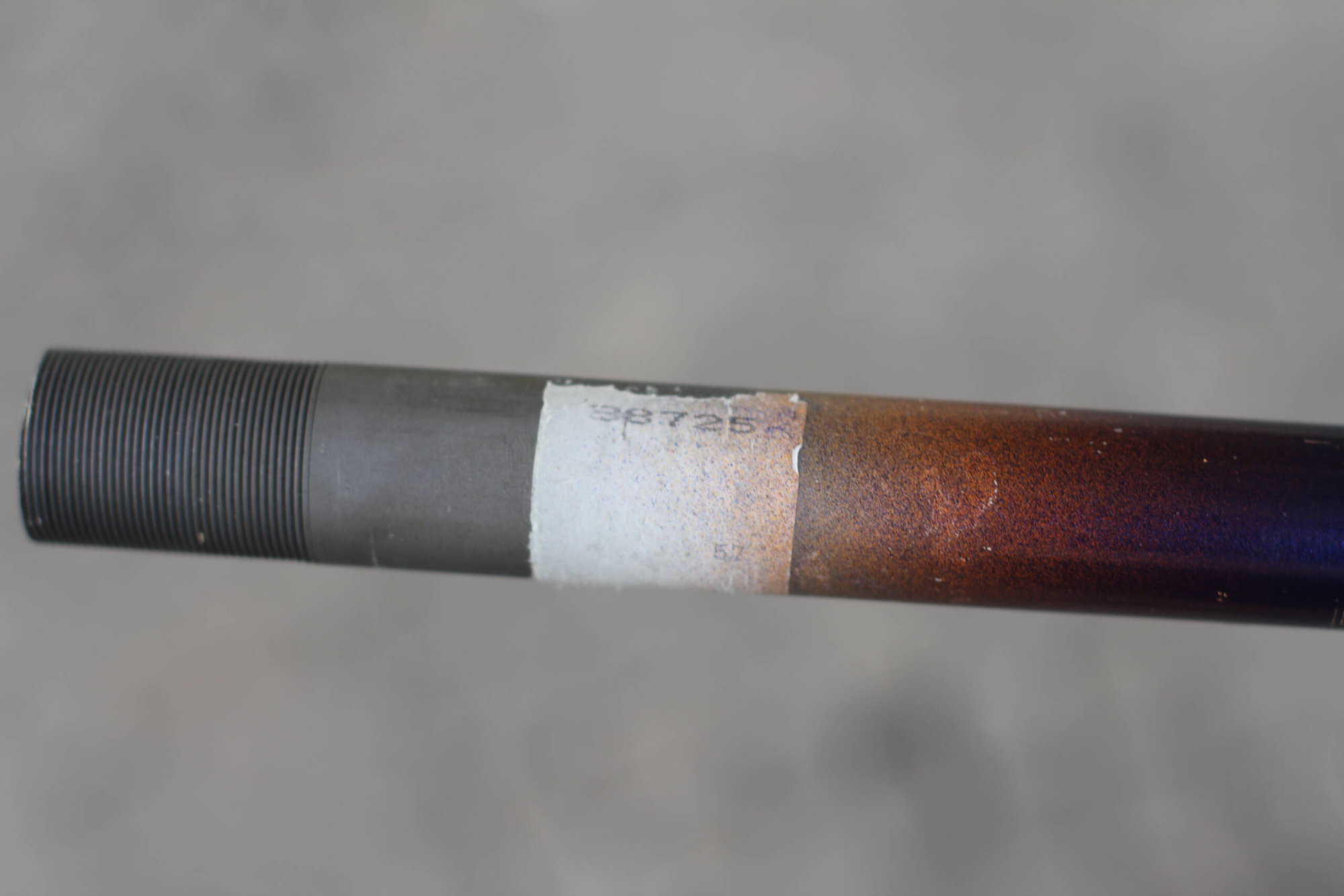

Fork Steerer “H” paper sticker “38725”57″

White / Blue / yellow / orange
decals red, golden outlines

(A) seattube:  56 cm (c/c) 57 cm (c/t)
(B) toptube:   56 cm (c/c)
(C) headtube: 145 mm
(D) fork steerer: 187 mm > 35 mm ITA Thread >> possible Headset stack 42 mm

wheelsize:    28″ 700C
front wheel: 100 mm
rear wheel:   130 mm

seatpost ø: 27,2 mm
BB Width: 70 mm
thread:    ITA 36×24

Weight: 2.909 g
frame  2.182 g
fork         727 g

Frame is straight, no dents, no dings, no cracks or damages
Paintjob generally good condition, some signs from use and minor retouches…some under the toptube
Chrome good
Attention threads are good, BUT BB housing was milled to install a Mavic 616 Bottom Bracket

Additional information

Weight2.7 kg
