ALAN Super Record Frame / 54,5 cm / Silver / early 1980s

699.00

Alan Super Record frame with original Fork also in silver from early 1980s
made of very light alloy Tubes with external brake cable routing



1 in stock

SKU: 2073 Categories: , , Tags: , , , ,


Description

Stamp

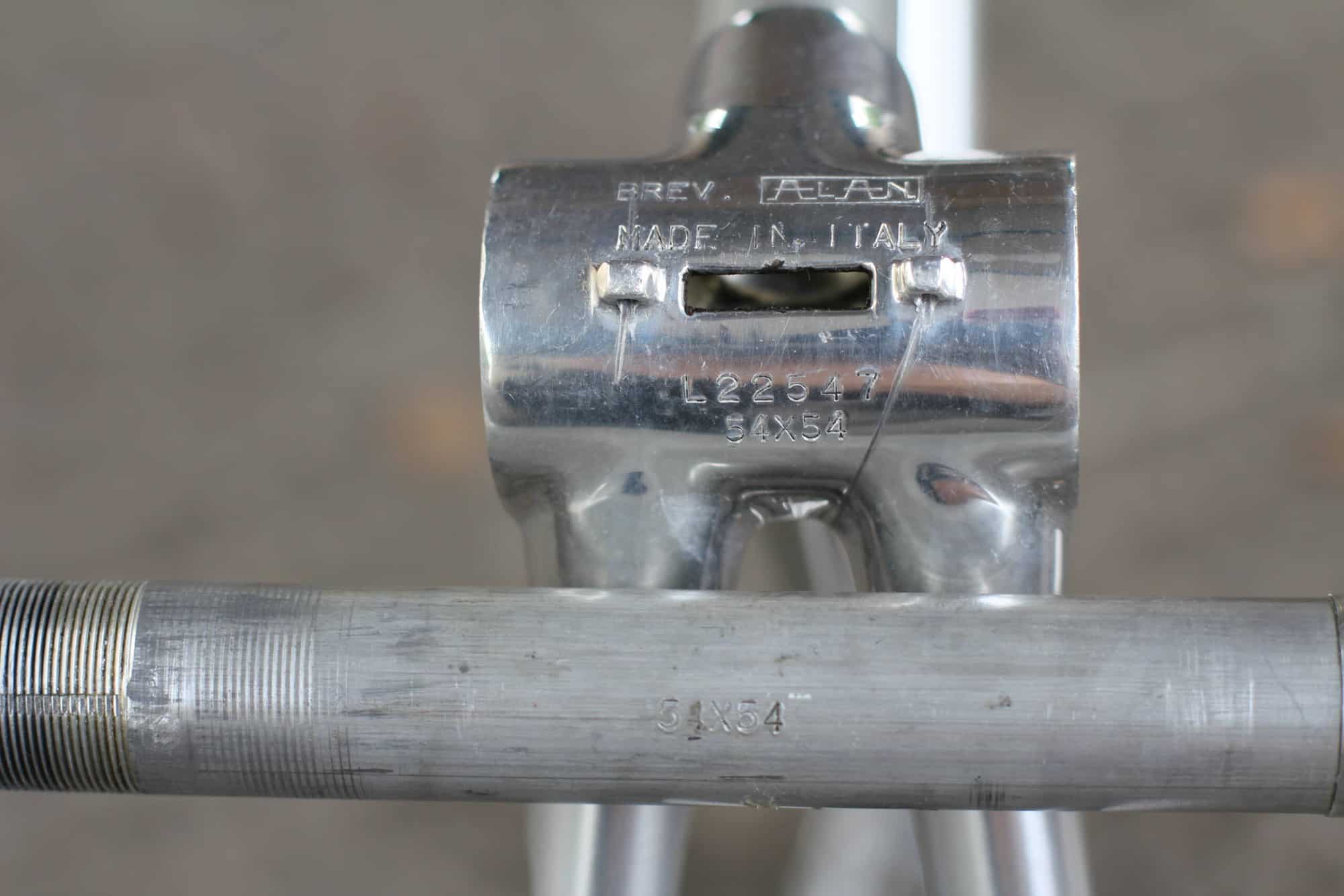

Bottom Bracket “”L22547” “54×54”

Color
silver
decals removed

Measurements
(A) seattube:   54,5 cm (C/C)  55,5 cm (C/T) >> triple checked, it’s not 54 cm
(B) toptube:    54 cm (C/C)
(C) headtube:   130 mm
(D) fork steerer:  172 mm > 25 mm ITA thread >> stack 42 mm

front wheel:  100 mm
rear wheel:    126 mm
wheelsize:      28″ 700C

seatpost ø   25,0 mm
BB Width:   70 mm
thread:         ITA 36×24

Weight: 2.283g
frame   1.745 g
fork      538 g

Condition
frame is straight, no cracks, no damages, no dents or dings
all lugs are free of cracks

Additional information

Weight2.2 kg
